Rock Lititz - Studio 3

Studio information

Studio Space

room name

Dimensions

Specifications

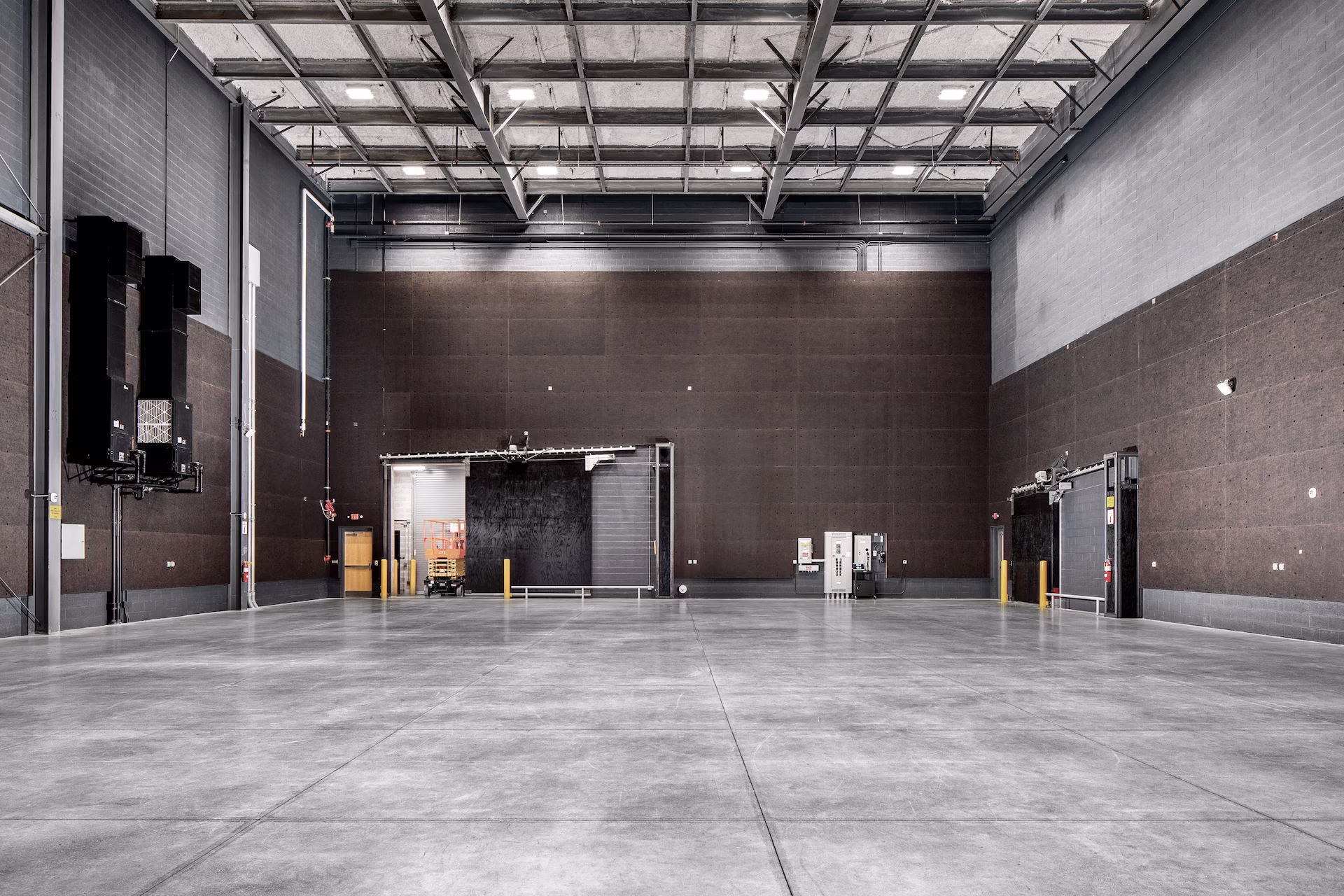

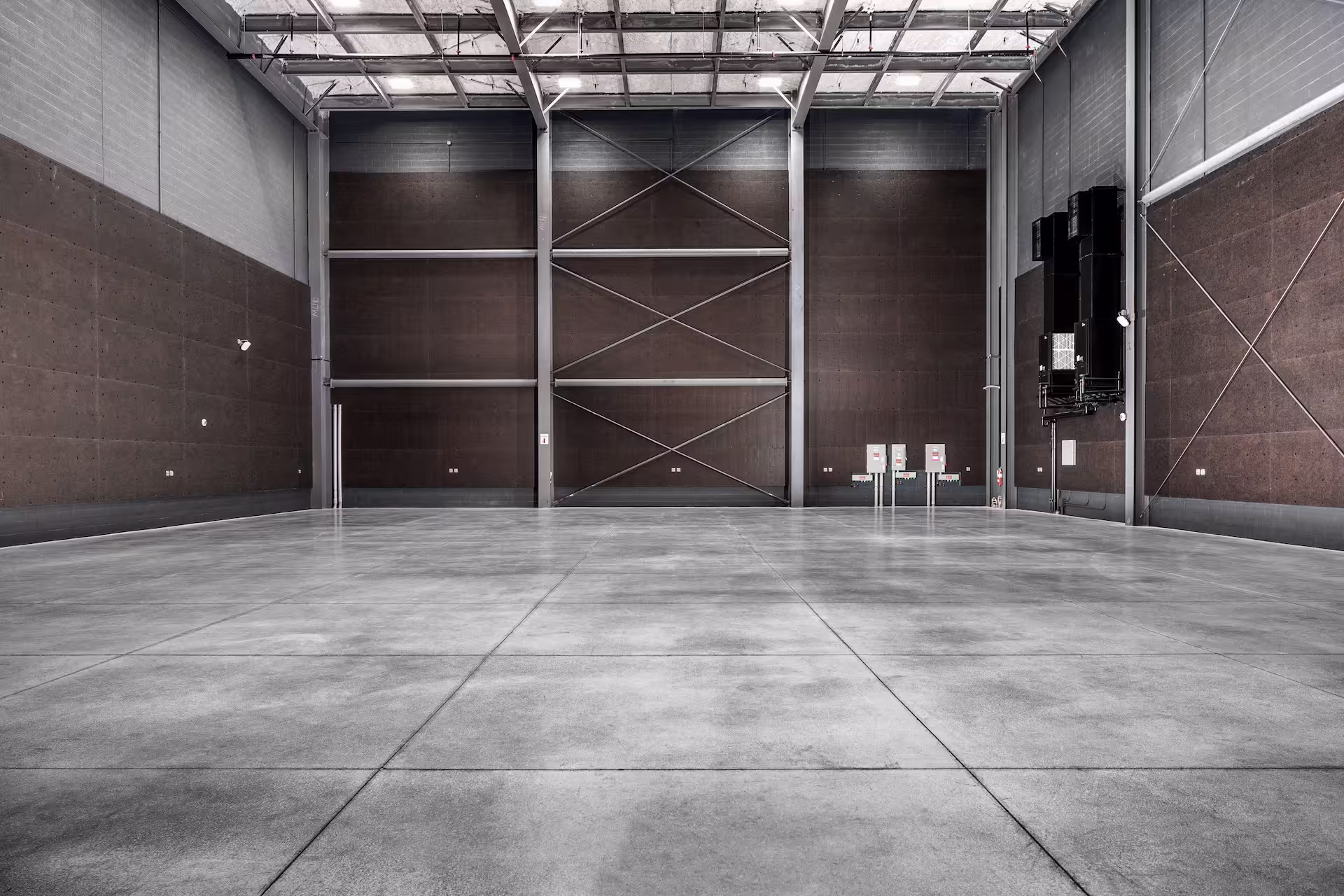

Main Studio Space

94' x 68'

28.65m x 20.72m

6,400 sq/ft (594 sq/m) of uninterrupted floor space.

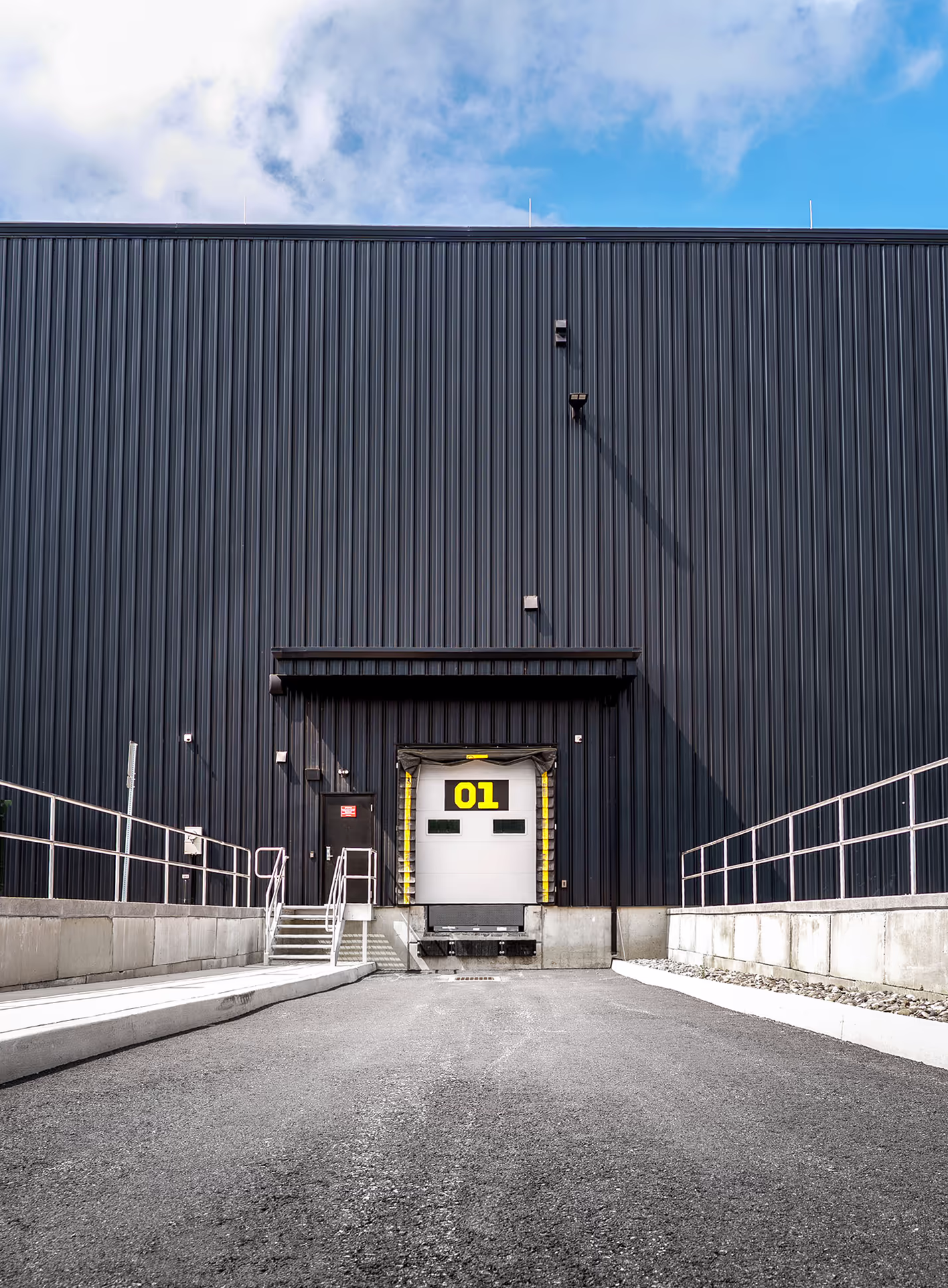

Common Dock

9' dock door

2.75m dock door

[1] common loading dock shared with ALT, 9 ft dock door, 20 ft push to Studio floor.

Drive In Dock

12' x 14'

3.65m x 4.26m

Drive-in Dock with Elephant Door

2nd Floor Service Area

N/A

Studio 3 upstairs service areas

Power 1

N/A

[1] CL200

Power

N/A

[2] CL400, [1] CL200

Service Areas

room name

Dimensions

Specifications

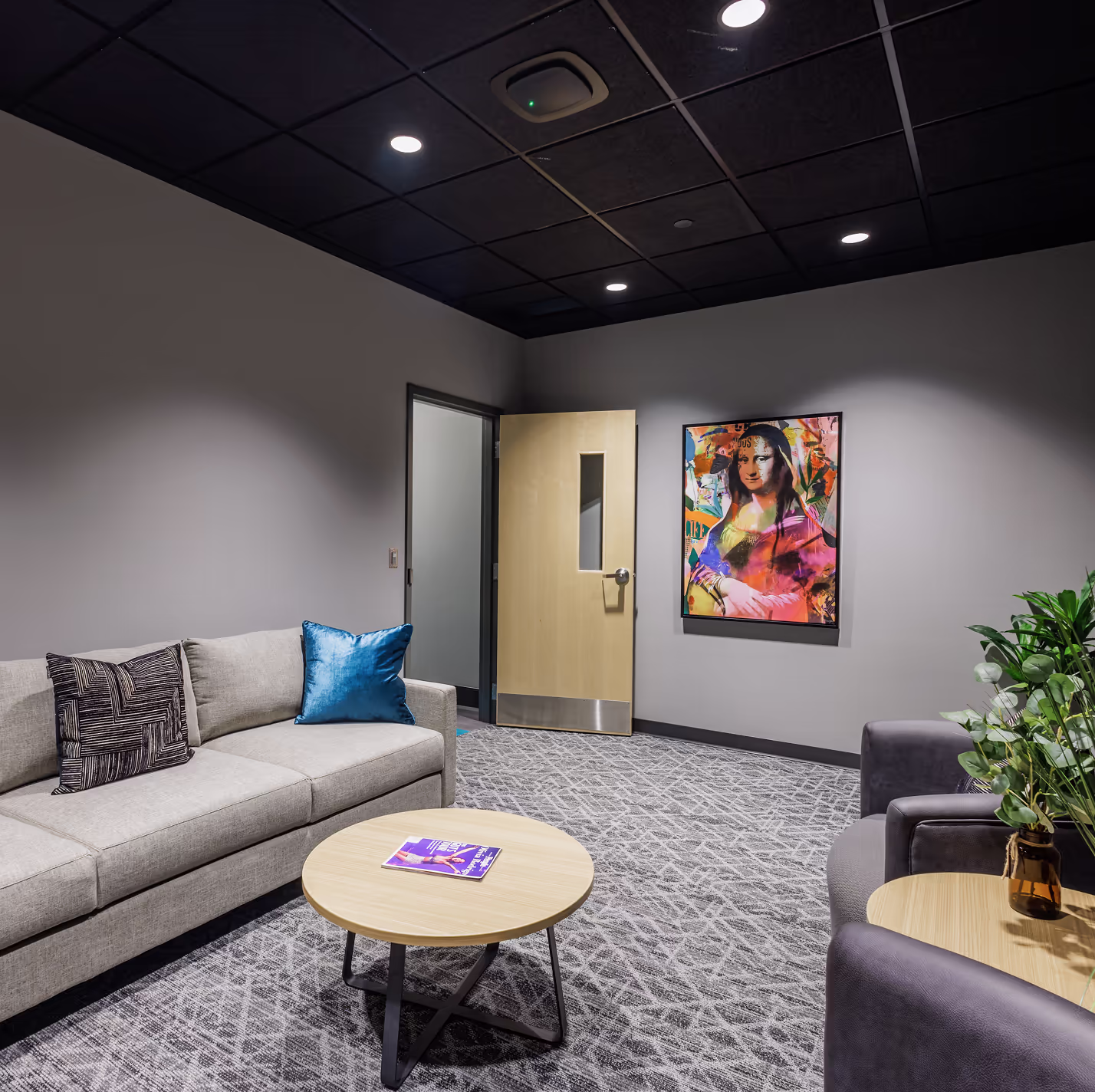

Dressing Room

11' x 16' 10"

3.35m x 5.13m

Dressing space with couch, chairs, TV, full length mirror, & refrigerator

Dressing Room

12' x 11'2"

3.65m x 3.04m

Dressing room with couch, TV, chairs

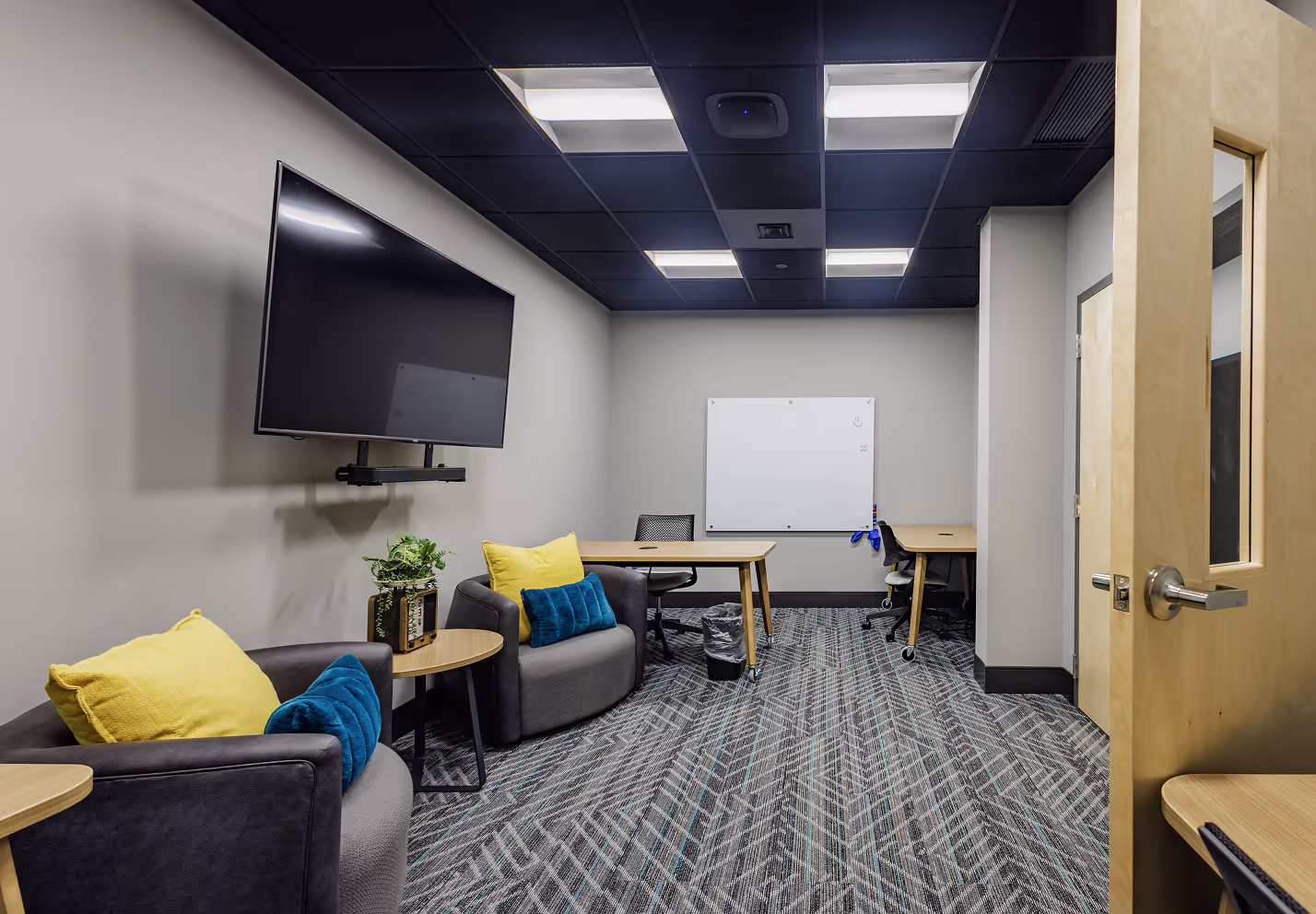

Production Office

20' x 11'2"

6.0m x 3.4m

Desks & Data for 2-4 people

Unisex Bathroom

8'6" x 11'2"

2.59m x 3.40

1 sink, 1 toilet, 1 shower

Laundry

9' x 11'2"

2.74m x 3.40m

Laundry Room with Washer and Dryer

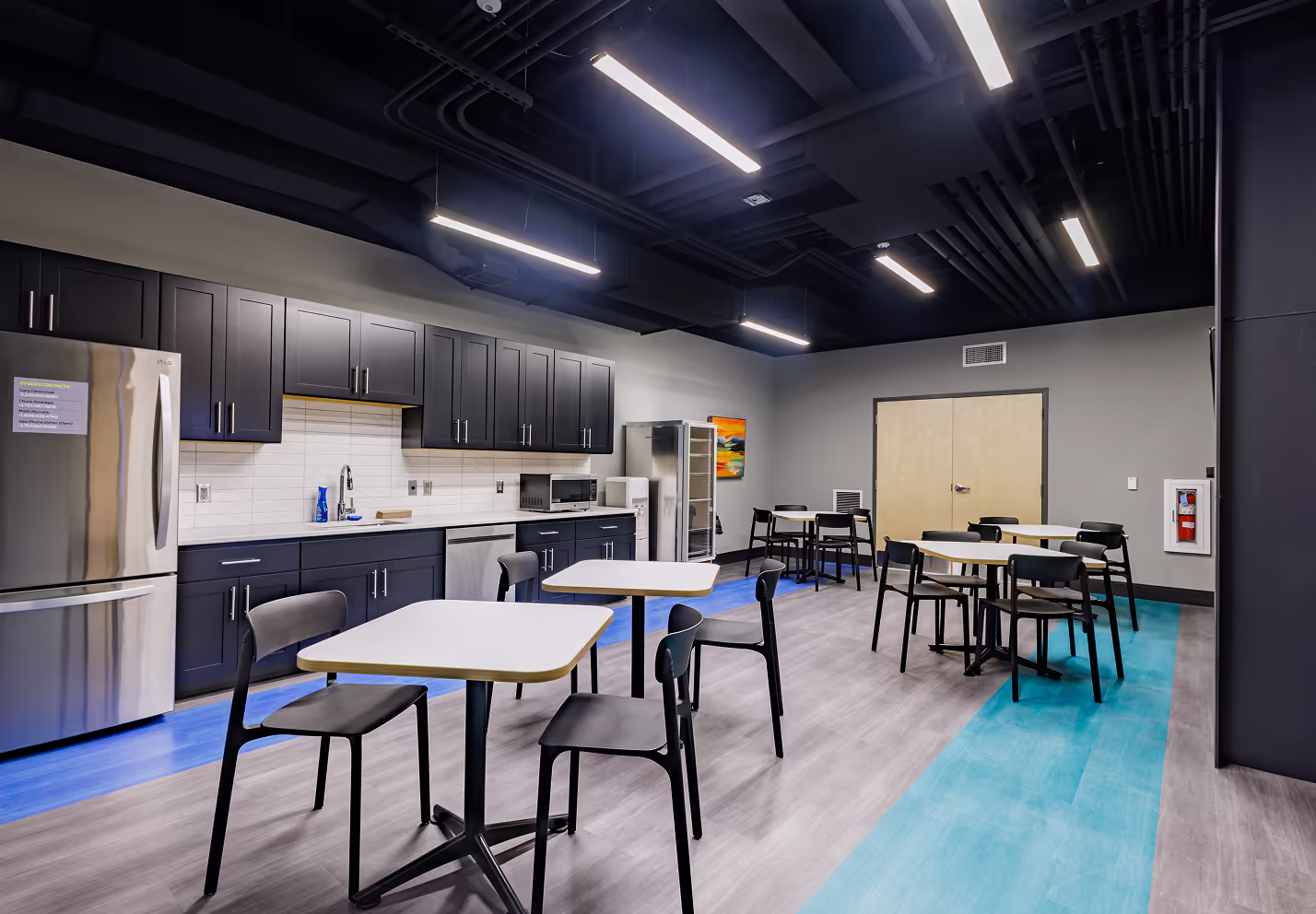

Dining Room

12'4" x 11'2"

3.76m x 3.4m

Dining area with Kitchenette, seating for 15+

Multi-Purpose Room

22'5" x 11'

6.8m x 3.35m

246 sq/ft of open multi-purpose space

Operations Office

25' x 23'

7.6m x 7.0m

121 sqft

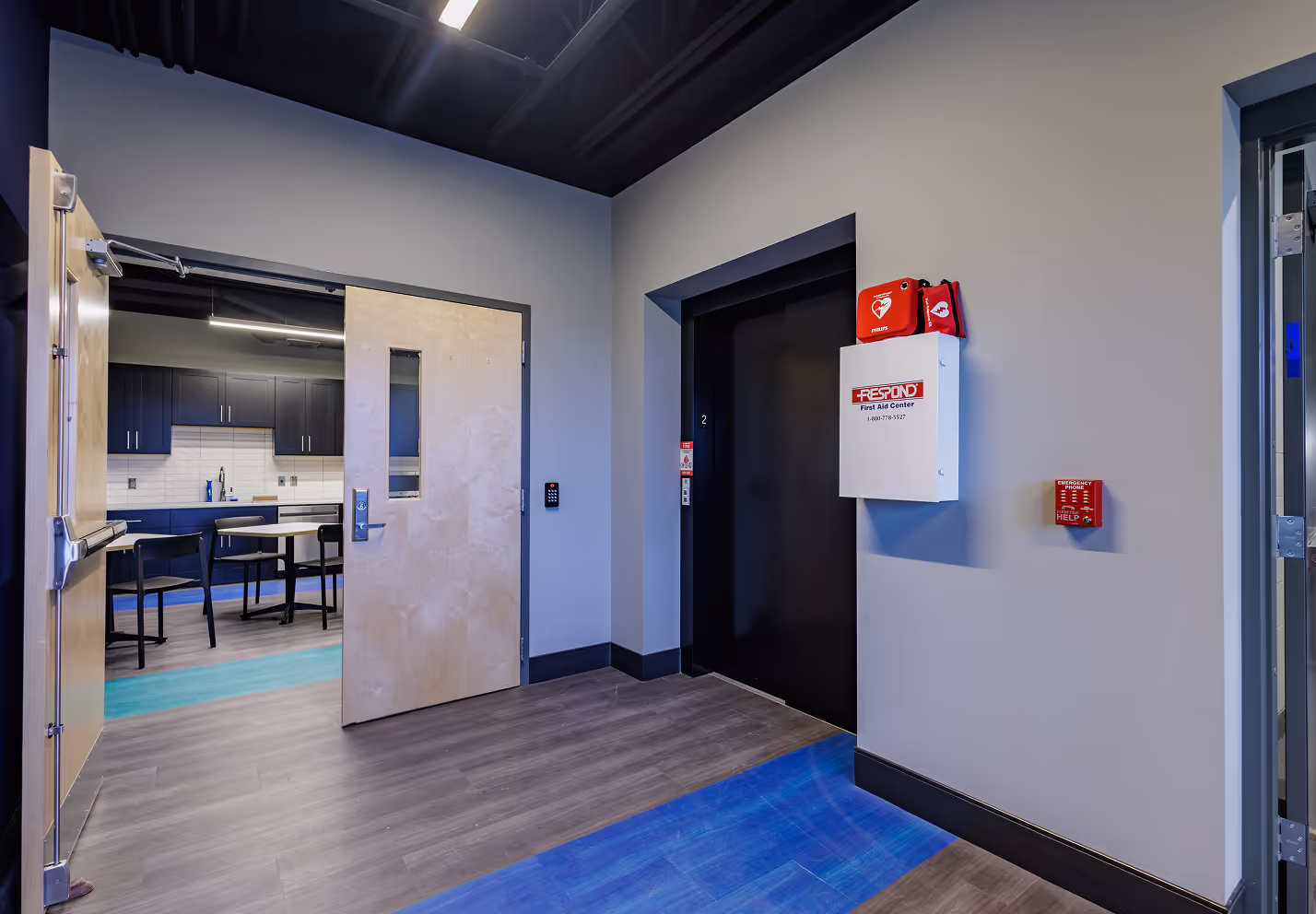

Elevator

10'8" x 8'4"

3.25m x 2.54m

Freight elevator with access to 1st floor studio space and 2nd floor service wing

Stairway

25' x 10'8"

7.62m x 3.25m

5' / 1.52m stair width

Rigging Specifications

Load Capactiy 100 US tons. Grid access only from floor. 40’ lift provided.

Load Capacity 90.7 metric tons. Grid access only from floor. 12m lift provided.

Tech Packet .PDF

↓

Contact for .DWG

→

Max Capacity

100tn

90.7mt

Height to Ceiling

N/A

Height to Grid

40'

12.19m

Safety

N/A

Full Specifications

Dimensions

Uninterrupted 94’ x 68’ open space. 40’ to the grid.

Rigging

ROOF CAPACITY

100 US tons / 225,000 lb load capcacity

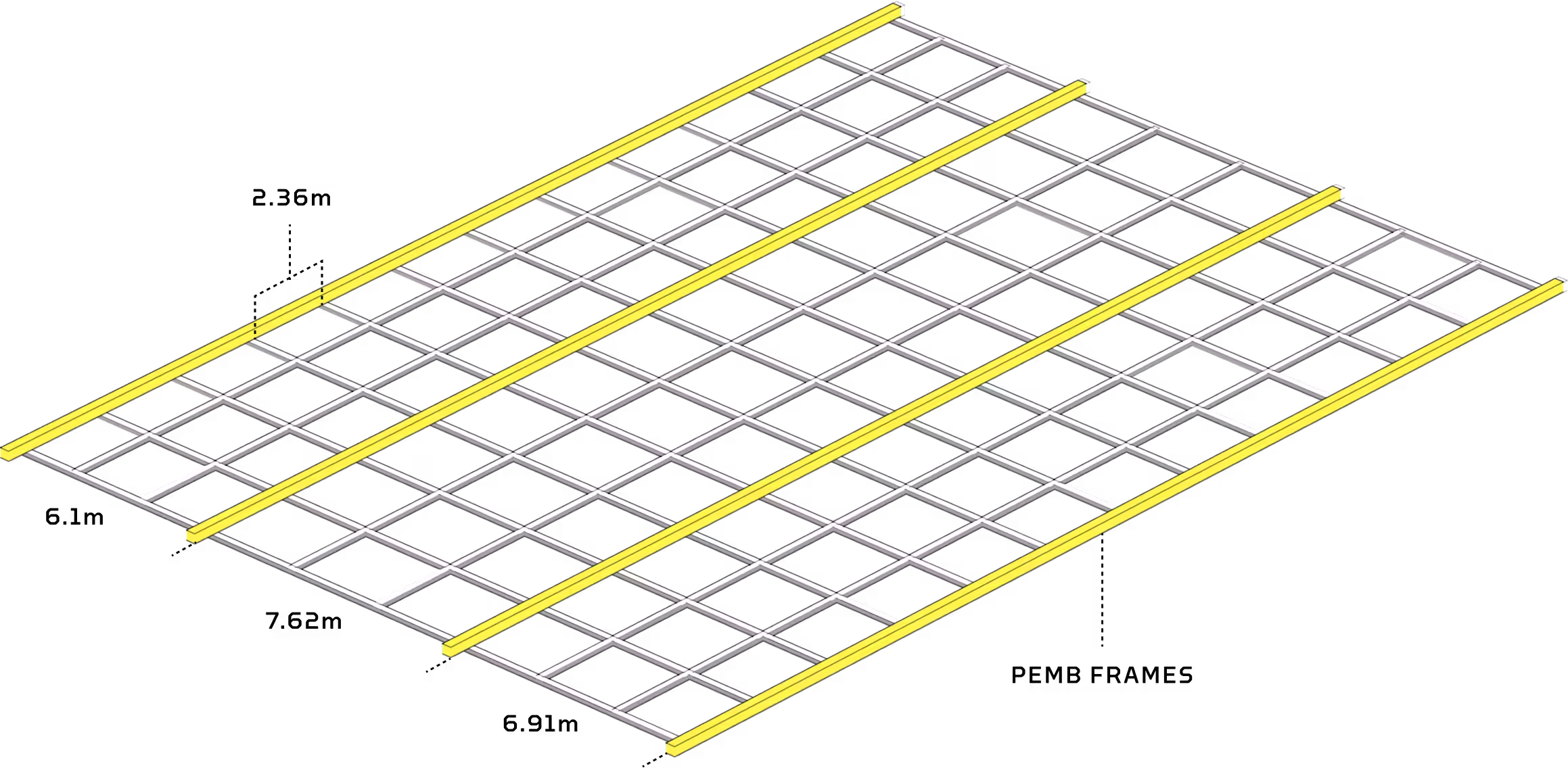

GRID SPECIFICATIONS

2.5 ton point loads on each 8’ span with a total of 10 tons on any 8’ x 25’ area.
Total live load of 50 psf including a 1.25 impact load factor.

GRID ACCESS

Grid access only from floor. 40’ lift provided.

Rooms

Main Studio Space - 94' x 68’
Production Office - 20' x 11' 2", desks / data for 2-4 people
Production Office - 22'5" x 11', open multi-purpose space
Private Dressing Room - 11' x 16'10", dressing space
Private Dressing Room - 12' x 11'2", dressing space
Private Unisex Restroom - 8'6" x 11'2", full-bath / 1 toilet, 1 sink, 1 shower
Dining Area - 12'4" x 11'2", seating for 15+, kitchenette

Power

[2] 400 amp 3 phase power service
[1] 200 amp 3 phase power service
[1] 200 amp 3 phase power service

Load-in

[1] 9' x 9' Common Dock - Shared with the Academy of Live Technology
[1] Drive-in Dock - 12' x 14'

Catering

138 sq/ft of Dining Space with Kitchenette, seating for 15+

Data Services

Labor

Provided through Rock Force

Additional Space

More amenity space available on campus upon request. All rentals come with access to Pod 2, including common area, gym, music shop, vendors, conference rooms, additional rehearsal space, and more.
