Rock Lititz - Studio 2

Studio information

Studio Space

room name

Dimensions

Specifications

Main Studio Space

125' x 175'

38.1m x 53.34m

22k sq/ft (2k sq/m) of uninterrupted floor space

Loading Docks

9' x 9'

2.74m x 2.74m

[4] Loading Docks + [1] 14’ x 14’ (4.26m x 4.26m) Drive Through Door

Service Area

18k sq/ft approx

1672 sq/mt approx

Production Office, Dressing Rooms, Catering Area

Power

N/A

[5] CL400, [1] CL200

Power

N/A

[1] CL400, [1] CL200

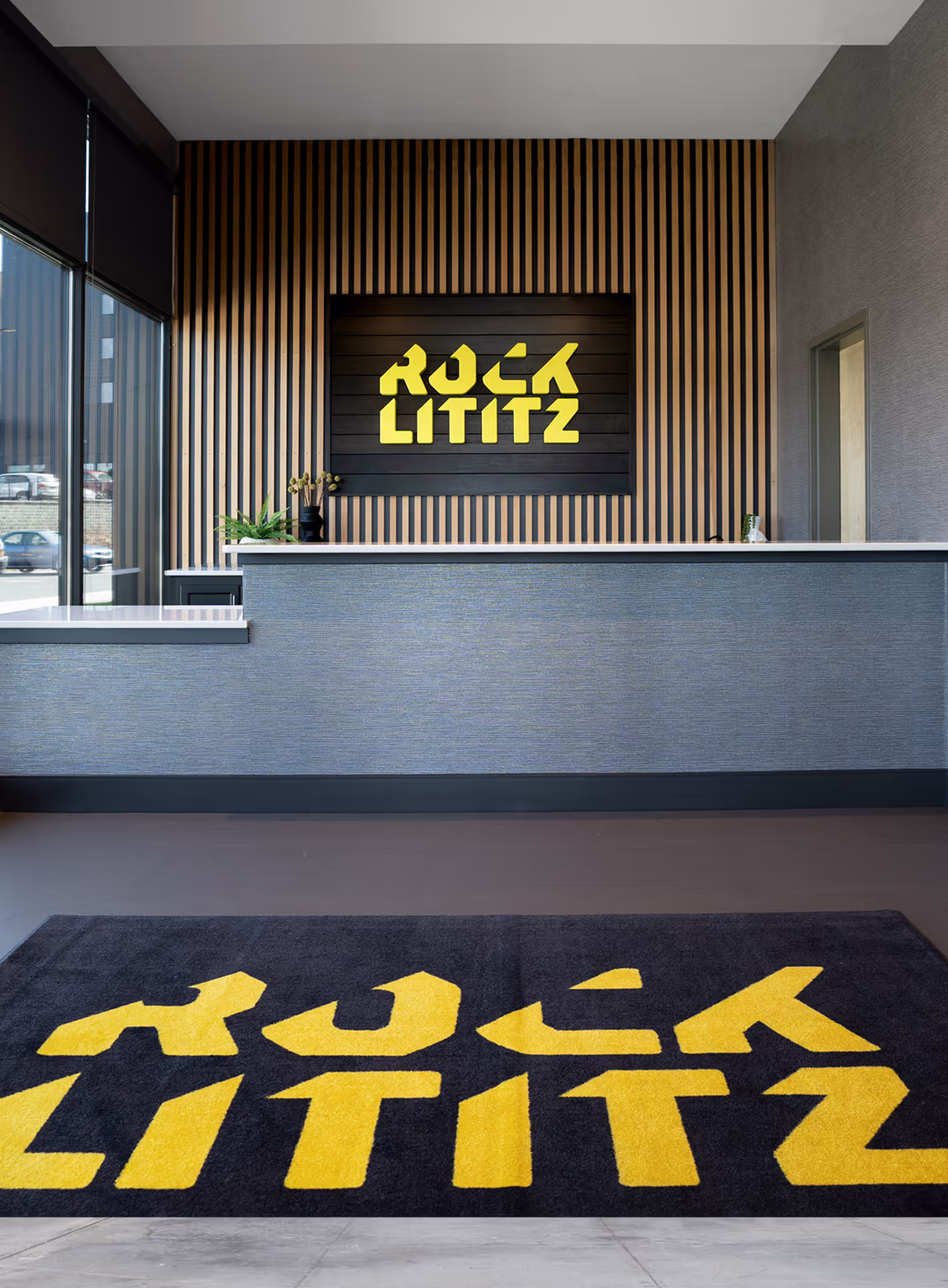

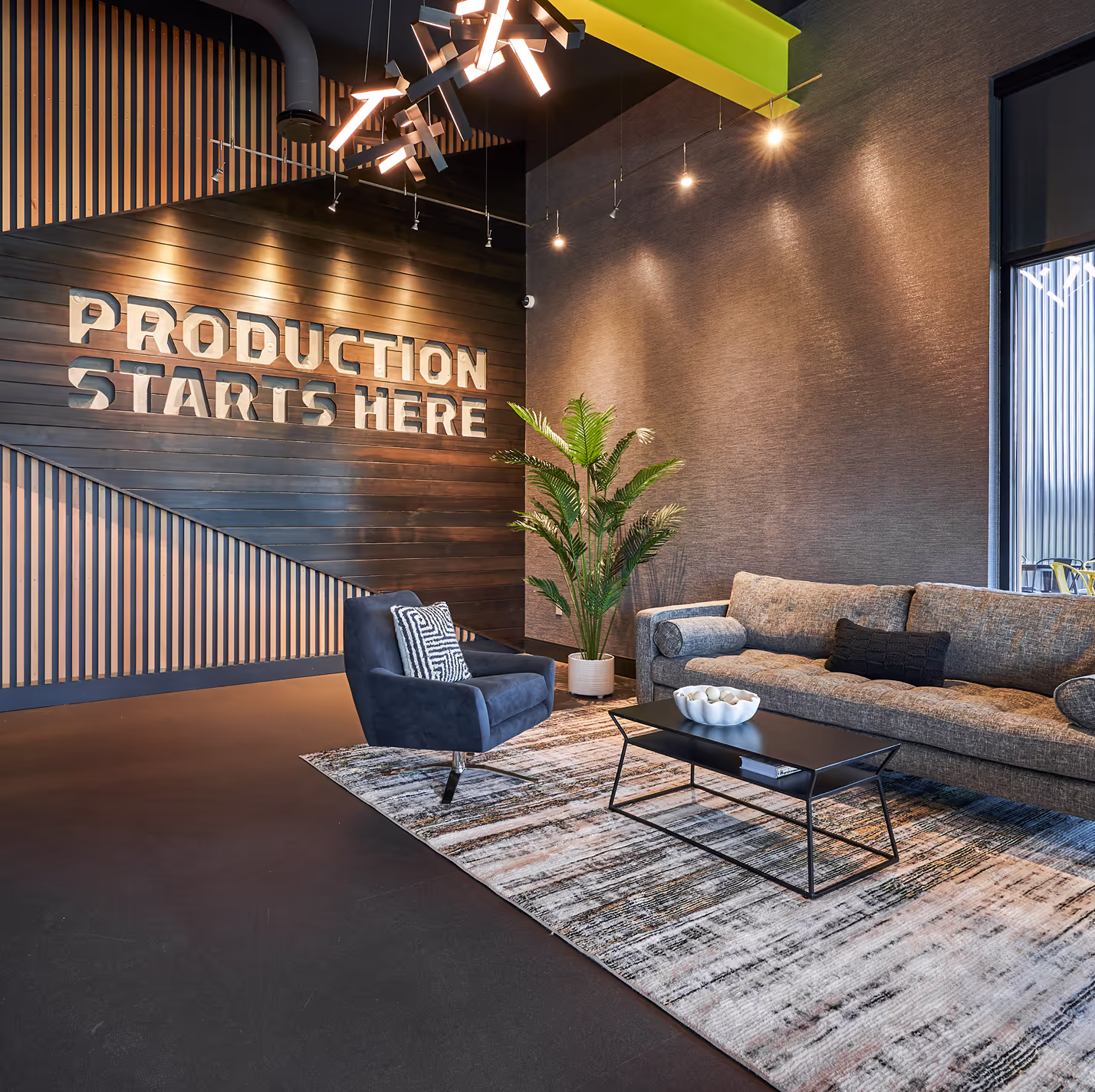

Main Entrance

N/A

Reception area - lobby

Service Areas

room name

Dimensions

Specifications

Dining Area

51' x 23'

15.5m x 7.0m

Seating for 50+, kitchen

Tour Office

15' x 14'

4.5m x 4.2m

Desk for 1 person

Production Office

51' x 24'

15.5m x 7.3m

Desks / Data for up to 13 people

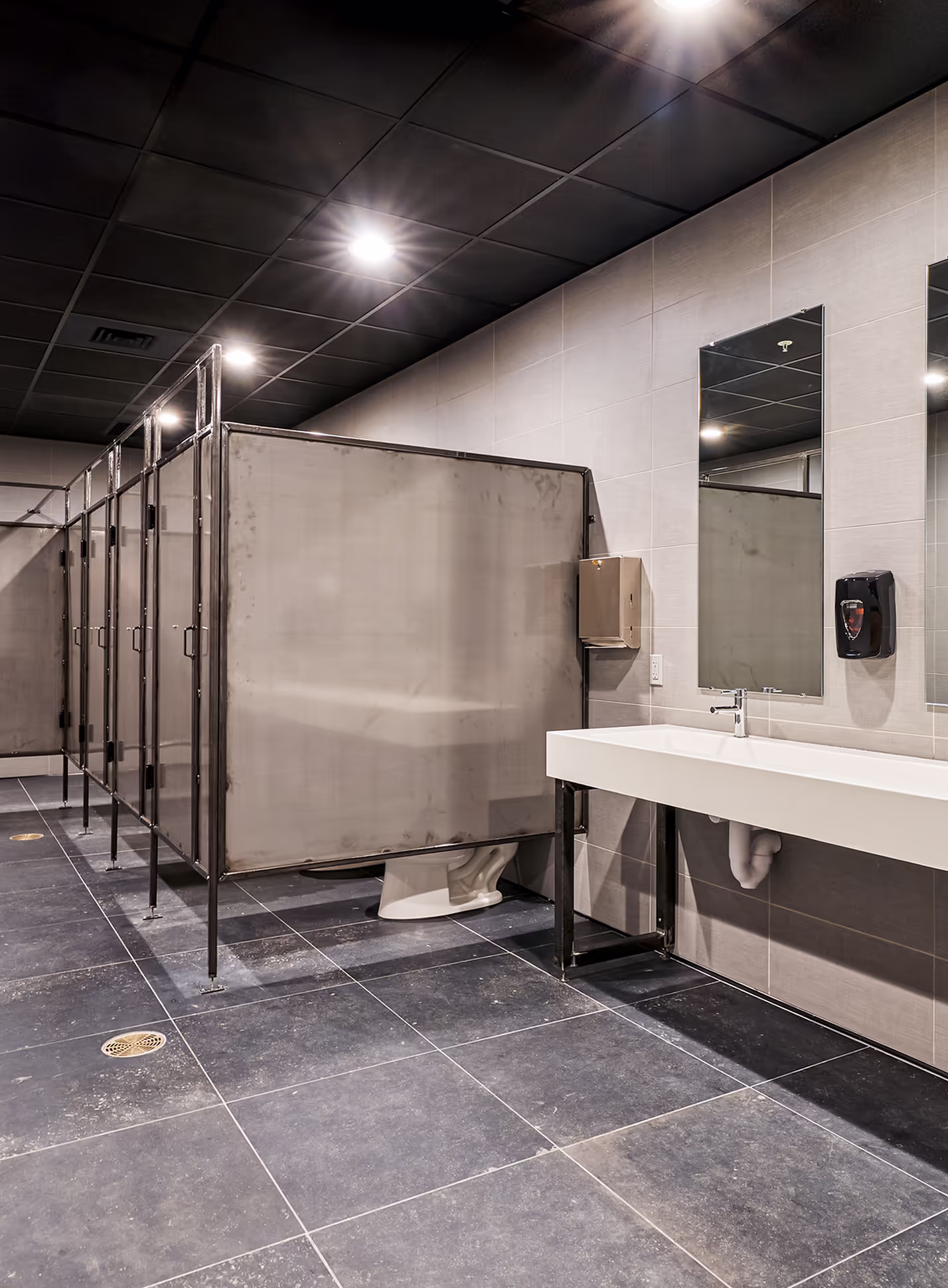

Men's Restroom

31' x 11'

9.4m x 3.3m

5 stalls, 5 urinals, 4 sinks

Women's Restroom

31' x 11'

9.4m x 3.3m

5 stalls, 4 sinks

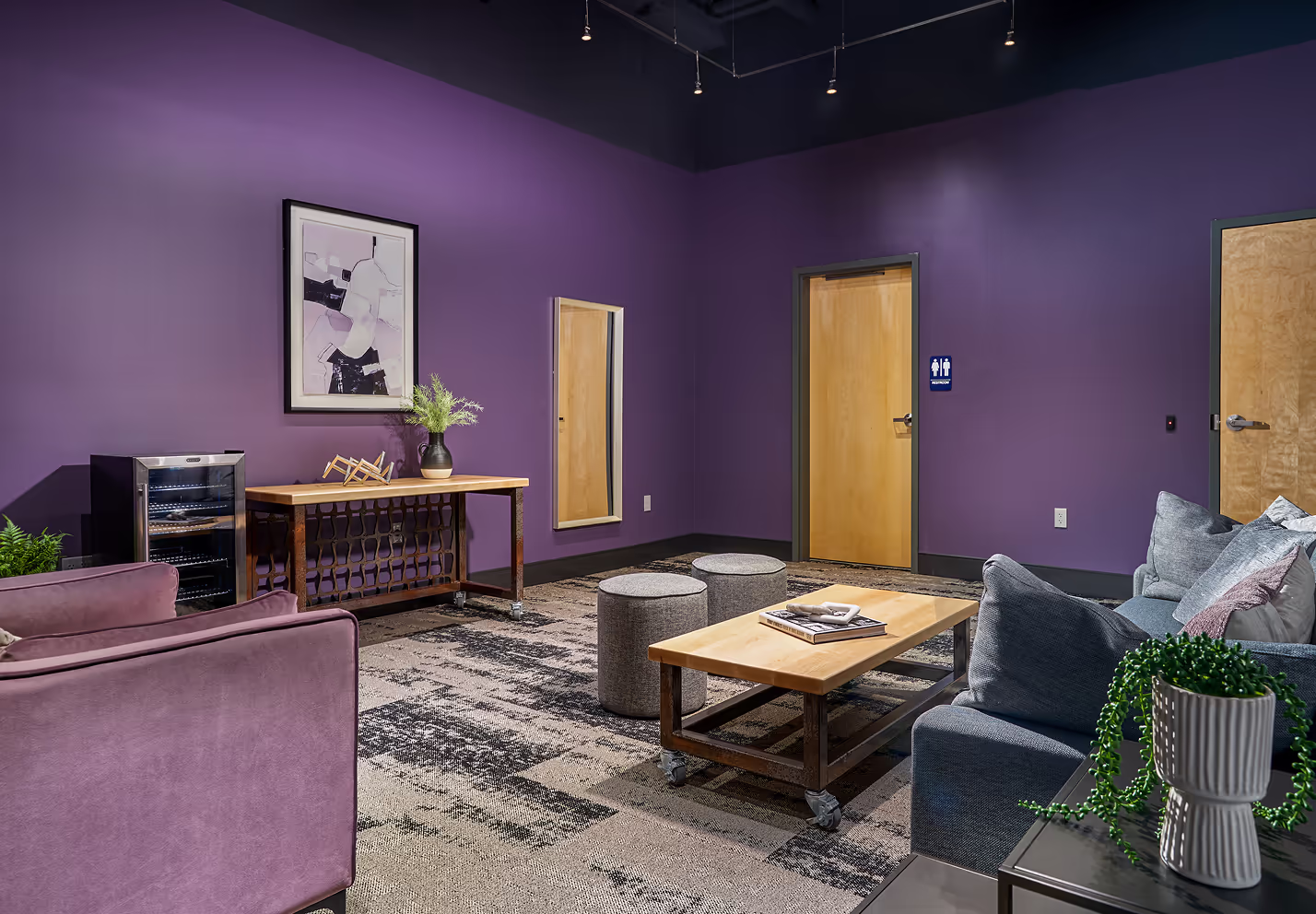

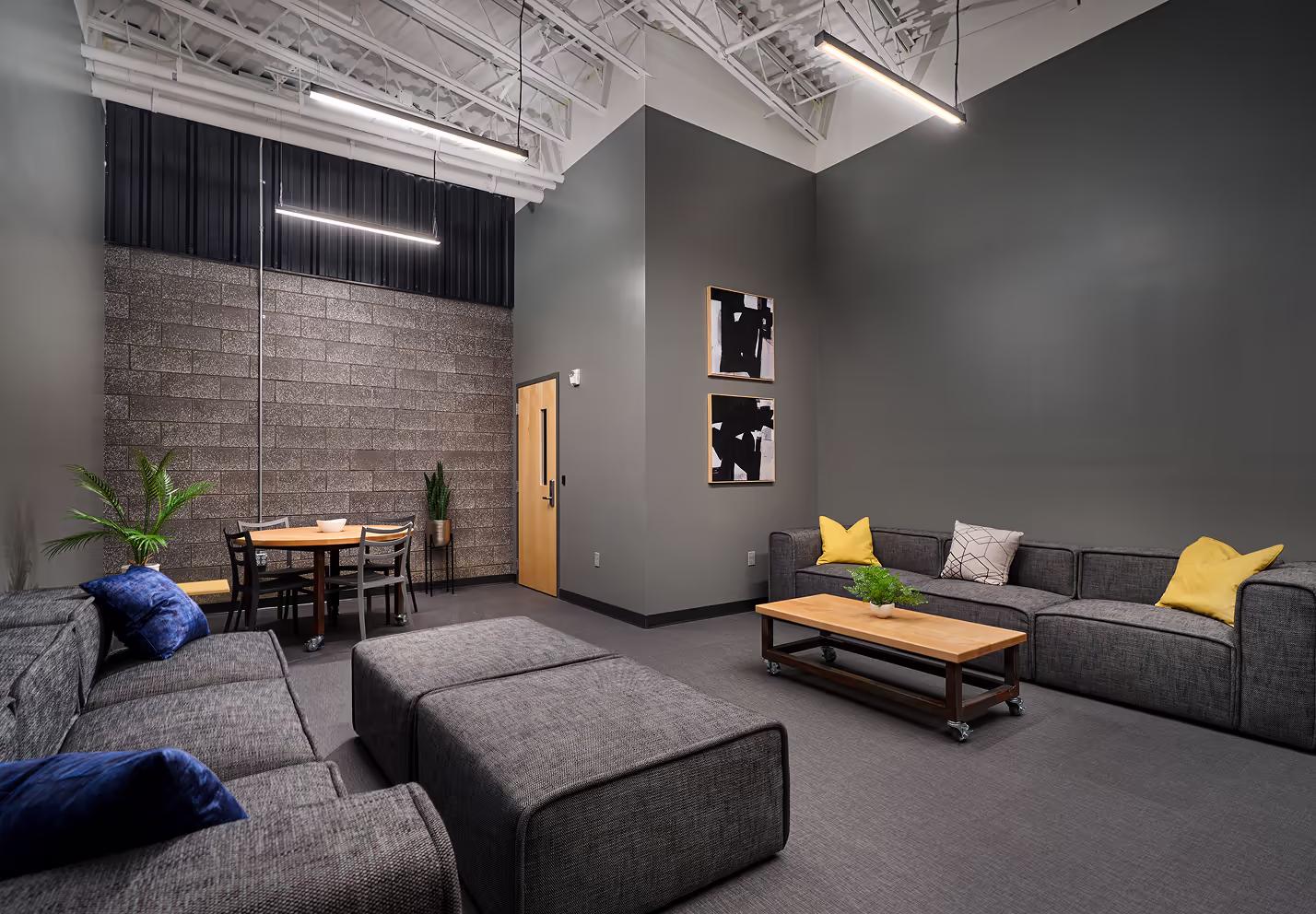

Multi-Purpose Dressing Room

24' x 16'

7.3m x 4.8m

Open space, lounge, desks

Multi-Purpose Dressing Room

25' x 17'

7.6m x 7.0m

Open space, lounge, desks

Dressing Room + Private Bath

25' x 23'

7.6m x 7.0m

Fully furnished dressing room with private full bath

Dressing Room + Private Bath

25' x 16'

7.6m x 4.8m

Fully furnished dressing room with private full bath

Main Entrance

N/A

Reception area - lobby

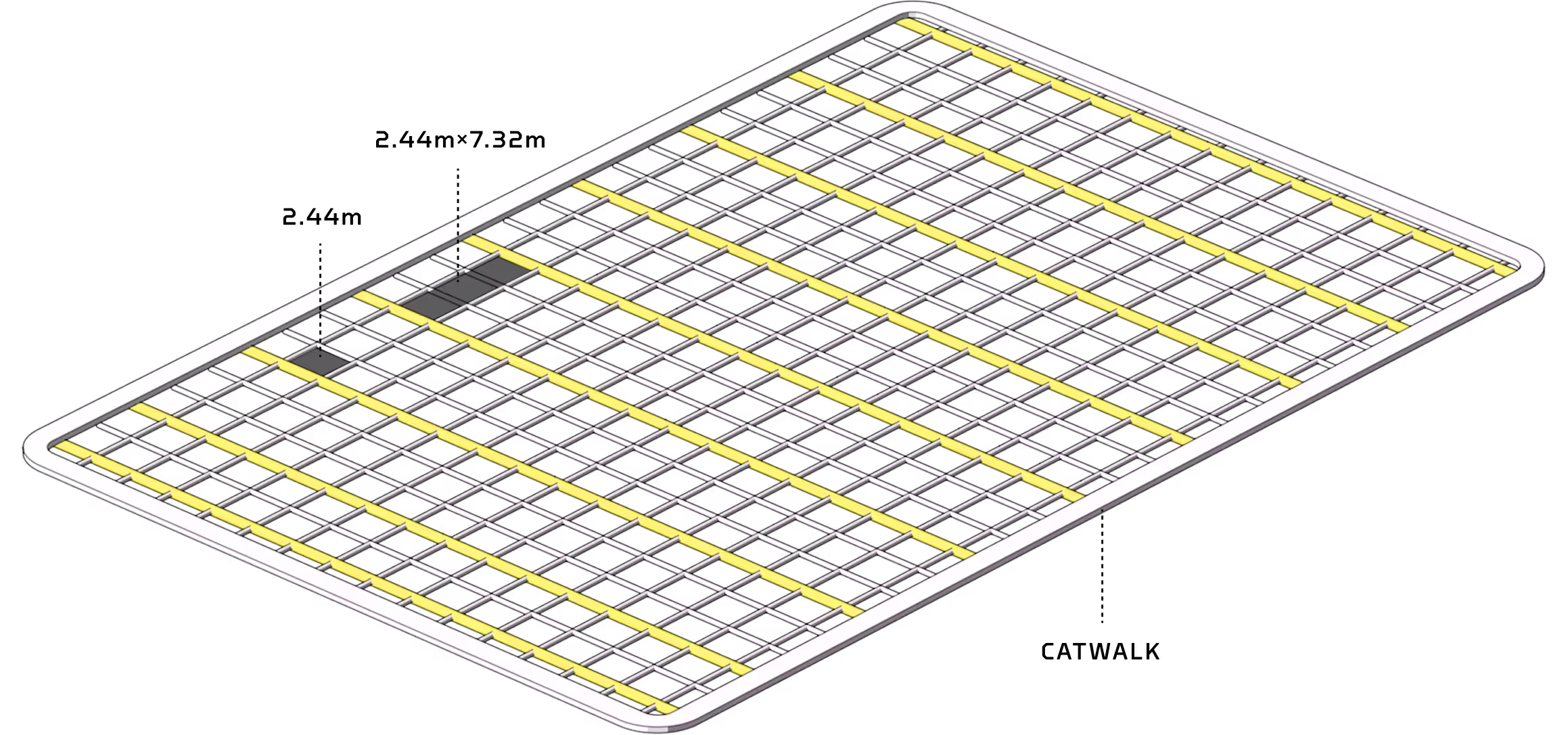

Rigging Specifications

3 ton point loads on each 8’ span with a total of 15 tons on any 8’ x 24’ area. Total live load of 198 psf including a 1.25 impact load factor. 400 US tons / 800,000 lbs total building load available

2.72 metric ton point loads on each 2.44 m span, with a total of 13.6 metric tons on any 2.44 m x 7.32 m area. Total live load of 967 kg/m², including a 1.25 impact load factor. 362 metric tons / 362,000 kg total building load available

Tech Packet .PDF

↓

Contact for .DWG

→

Max Capacity

400tn

362mt

Height to Ceiling

80'

24.38m

Height to Grid

65'

19.81m

Safety

Fall protection cable system installed 6' 8" above each beam in grid system

Fall protection cable system installed 2m above each beam in grid system

Full Specifications

Dimensions

Uninterrupted 125’x175’ open space. 65’ to grid, 80’ to ceiling

Rigging

ROOF CAPACITY

400 US ton / 800,000 lb load capacity

GRID SPECIFICIATIONS

3 ton point loads on each 8’ span with a total of 15 tons on any 8’ x 24’ area.
Total live load of 198 psf including a 1.25 impact load factor

SAFETY

Fall protection cable system installed 6’8” above each beam in grid system

Rooms

Dining Area - 51' x 23', seating for 50+, kitchen
Tour Office - 15' x 14', desk for 1 person
Production Office - 51' x 24', desks / Data for up to 13 people
Men's Restroom - 31' x 11', 5 stalls, 5 urinals, 4 sinks
Women's Restroom - 31' x 11', 5 stalls, 4 sinks
Multi-Purpose Dressing Room - 24' x 16', open space, lounge, desks
Multi-Purpose Dressing Room - 25' x 17', open space, lounge, desks
Dressing Room + Private Bath - 25' x 23', fully furnished dressing room with private full bath
Dressing Room + Private Bath - 25' x 16', fully furnished dressing room with private full bath
Front Entrance - 35' x 40', reception area - lobby
Main Studio Space - 125' x 175'

Power

[7] 400A, 3 phase power
[2] 200A, 3 phase power

Load-in

[4] loading docks with levelers, with 10’ push to Studio floor
[1] 14’ x 14’ drive through door

Catering

Full service catering kitchen with private dining for crews, 51' x 23', seating for 50+

Data Services

Labor

Provided through Rock Force

Additional Space

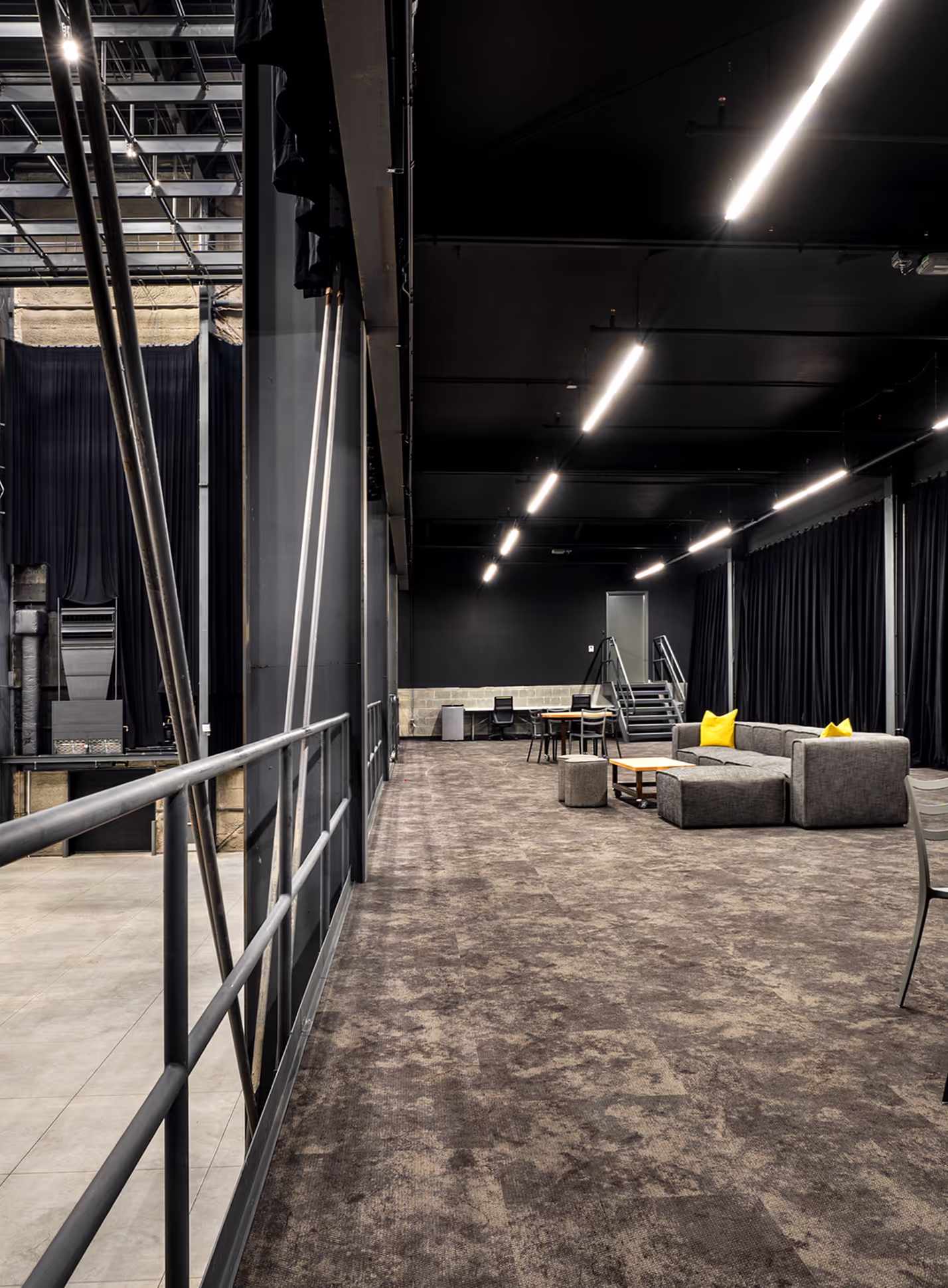

FOH

90’ x 24’ open mezzanine over the loading dock, offering a viewing height from 16 feet and full access to Studio floor

More amenity space available on campus upon request. All rentals come with access to Pod 2, including common area, gym, music shop, vendors, conference rooms, additional rehearsal space, and more.

Dimensions

Uninterrupted 38.1m x 53.34m open space. 19.81m to grid, 24.38m to ceiling

Rigging

ROOF CAPACITY

362 metric tons / 362,000 kg load capacity

GRID SPECIFICIATIONS

2.72 metric ton point loads on each 2.44 m span, with a total of 13.6 metric tons on any 2.44 m x 7.32 m area.
Total live load of 967 kg/m², including a 1.25 impact load factor.

SAFETY

Fall protection cable system installed 2m above each beam in grid system

Rooms

Dining Area - 15.5m x 7.0m, seating for 50+, kitchen
Tour Office - 4.5m x 4.2m, desk for 1 person
Production Office - 15.5m x 7.3m, desks / Data for up to 13 people
Men's Restroom - 9.4m x 3.3m, 5 stalls, 5 urinals, 4 sinks
Women's Restroom - 9.4m x 3.3m, 5 stalls, 4 sinks
Multi-Purpose Dressing Room - 7.3m x 4.8m, open space, lounge, desks
Multi-Purpose Dressing Room - 7.6m x 5.2m, open space, lounge, desks
Dressing Room + Private Bath - 7.6m x 7.0m, fully furnished dressing room with private full bath
Dressing Room + Private Bath - 7.6m x 4.8m, fully furnished dressing room with private full bath
Front Entrance - 10.6m x 12.2m, reception area - lobby
Main Studio Space - 38.1m x 53.34m

Power

[7] 400A, 3 phase power
[2] 200A, 3 phase power

Load-in

[4] loading docks with levelers, with 6m push to floor
[1] 4.2m x 4.2m drive through door

Catering

Full service catering kitchen with private dining for crews, 15.5m x 7m, seating for 50+

Data Services

Labor

Provided through Rock Force

Additional Space

FOH

27.43m x 7.31m open mezzanine over the loading dock, offering a viewing height from 16 feet and full access to Studio floor

More amenity space available on campus upon request.All rentals come with access to Pod 2, including common area, gym, music shop, vendors, conference rooms, additional rehearsal space, and more.
