Rock Lititz Studios
soundcheck Studios

Studio 1

No items found.
No items found.
Studio 4 is reserved for educational use. If you are interested in use of Studio 4, please contact booking@rocklititz.com
Close button
Dimensions
240'
x
125'
Dimensions
73.15m
x
38.1m
To Grid
80'
To Grid
24.38m
Capacity
500tn
Capacity
453mt
Power
[8] 400A 3ø + More
Power
[8] 400A 3ø + More
Dimensions
240'
x
125'
Dimensions
73.15m
x
38.1m
To Grid
80'
To Grid
24.38m
Capacity
453mt
Power
[8] 400A 3ø + More
Power
[8] 400A 3ø + More
FOH SPEAKERS
✓
×
FOH Console
✓
×
Monitors
✓
×
MONITOR CONSOLE
✓
×
About the studio

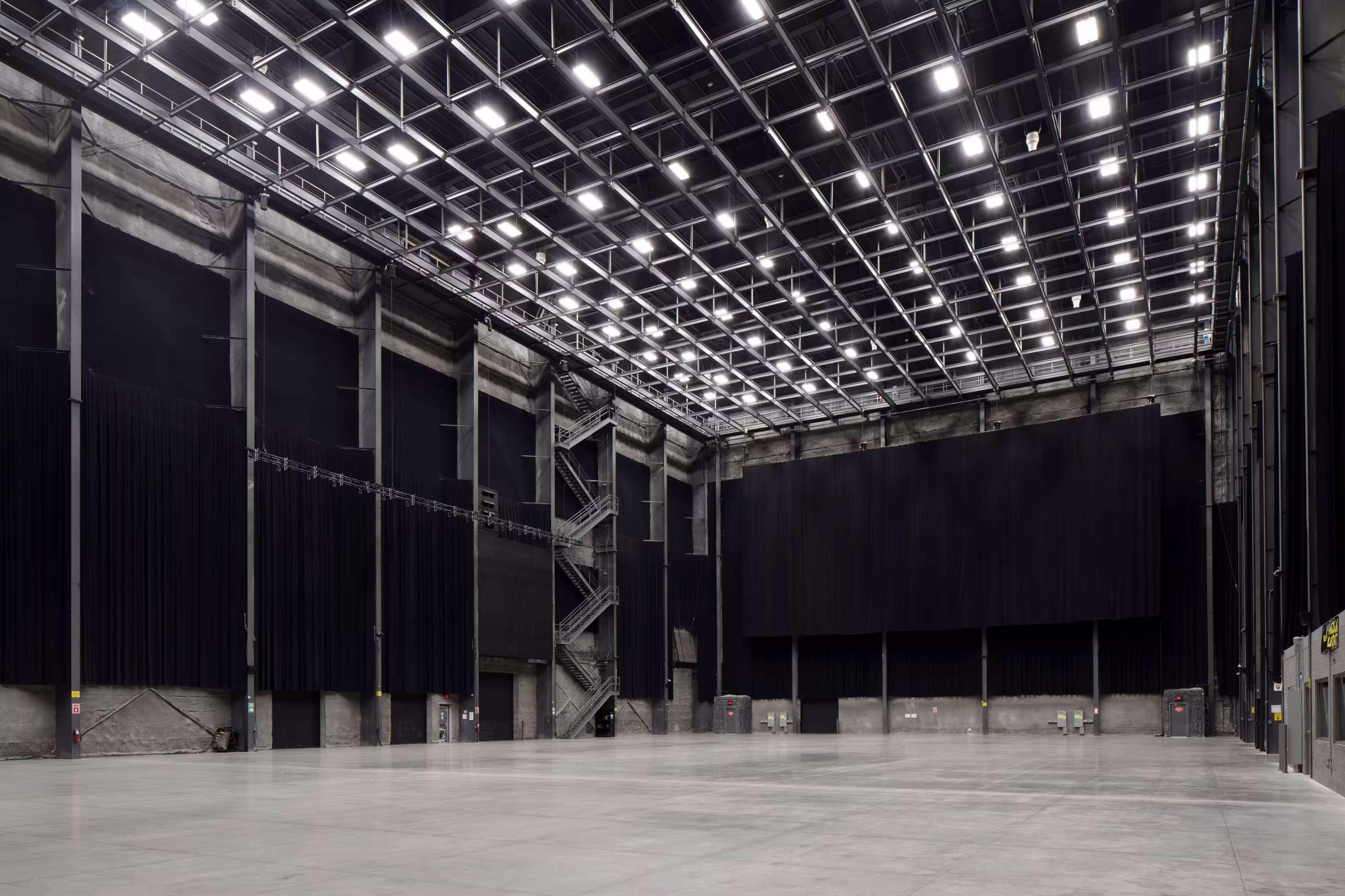

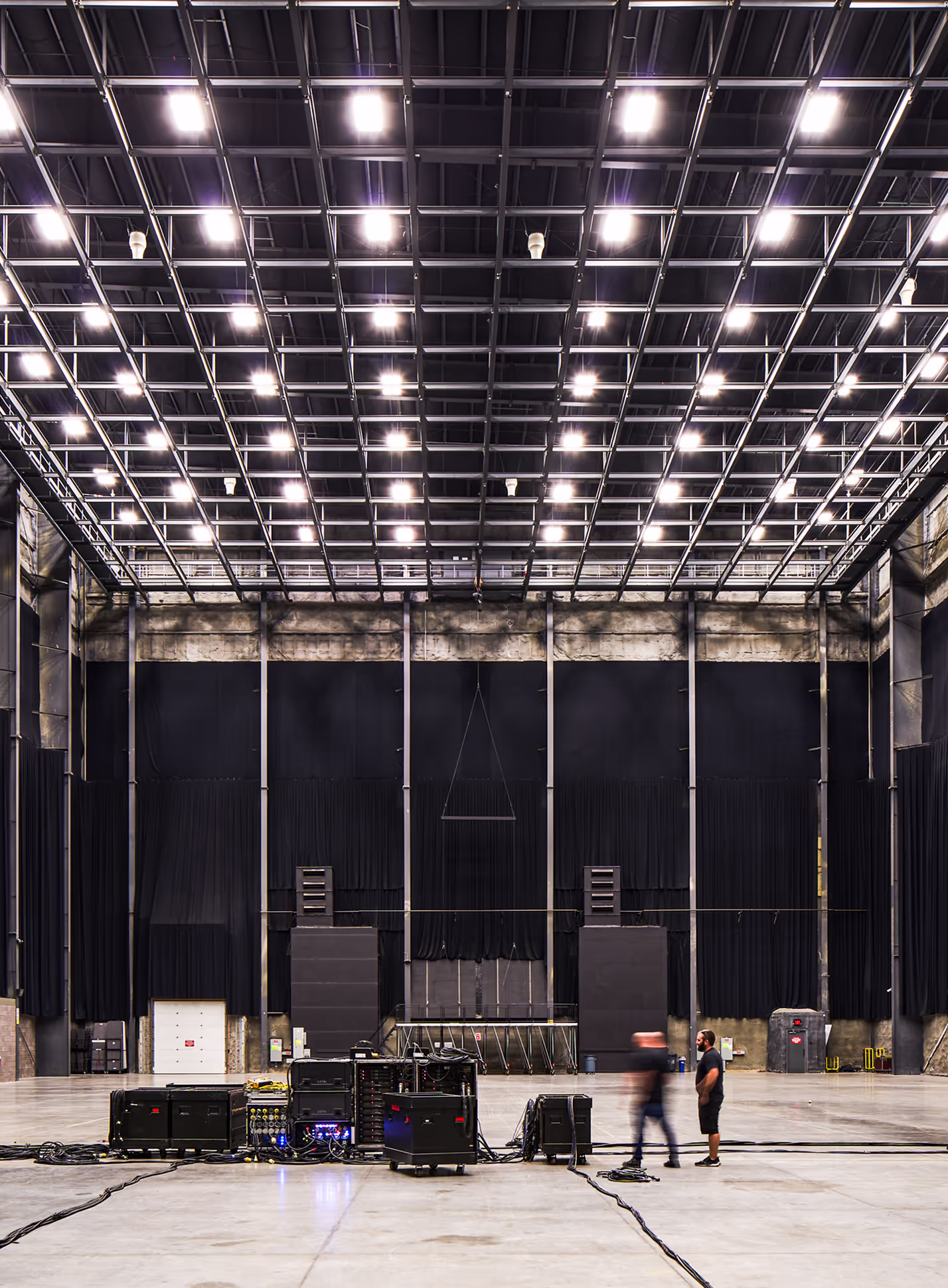

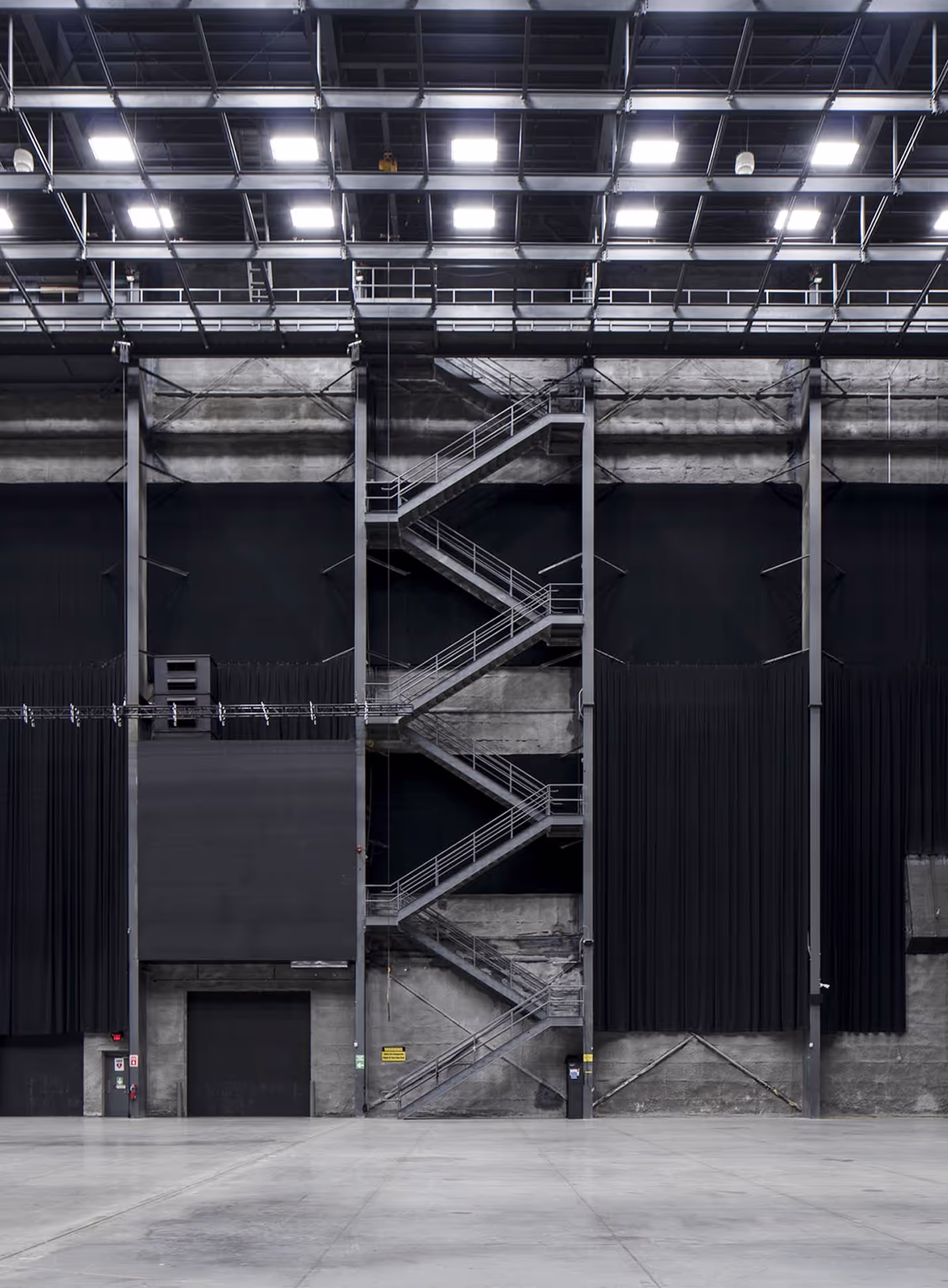

At the heart of the Rock Lititz campus, Studio 1 is our original building, known as one of the tallest and strongest rehearsal facilities in the world and hosting many of the world’s top-grossing tours over the last decade.

100 Studio Drive Lititz, PA 17543

Docks #8 (Drive in), #9, #10, #11, #12
Dock Map .PDF ↓
Technical Packet .PDF ↓
Backline Information
FOH Speakers
FOH Console
Monitors
Monitor Console
No items found.
Slider left
Slider right
No items found.
Studio information
Studio Space
Main Entrance
Main Studio Space
Loading Docks
Service Area
Power
Power
Power
Power
room name
Dimensions
Specifications
Main Entrance
N/A
N/A

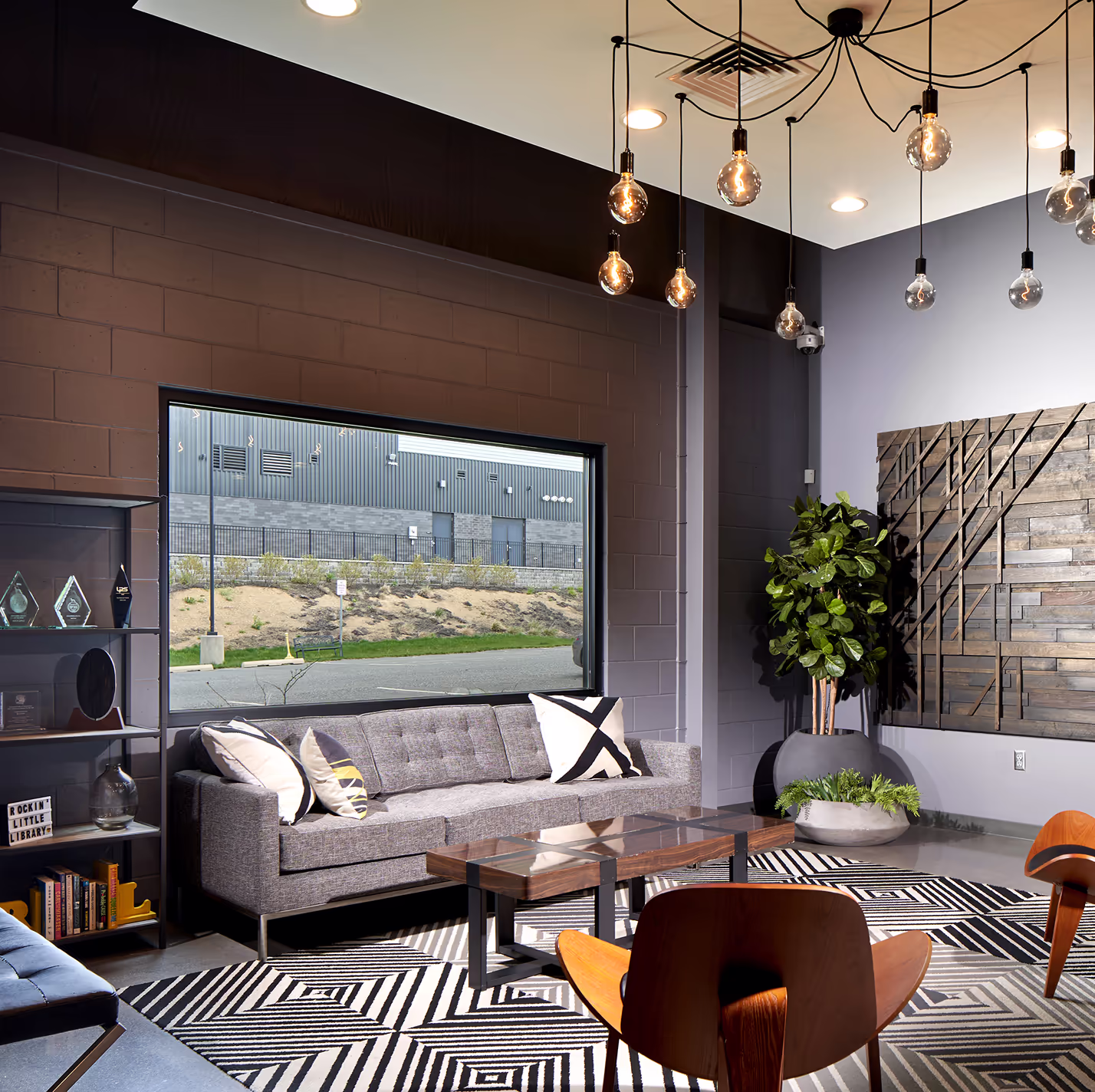

Reception area - small lobby lounge

Main Studio Space
125' x 240'
38.1m x 73.15m

30k sq/ft (2.78k sq/m) of uninterrupted floor space

Loading Docks
9' x 9'
2.74m x 2.74m

[4] Loading Docks + [1] 14’ x 14’ (4.26m x 4.26m) Drive Through Door + [1] 12’x12’ (3.65m x 3.65m) drive in door

Service Area
46' x 240'
14m x 73.15m

Production Office, Dressing Rooms, Catering Area, Mirrored Rehearsal Room

Power
N/A
N/A

[2] CL400

Power
N/A
N/A

[2] CL400

Power
N/A
N/A

[1] CL400

Power
N/A
N/A

[2] CL400

Service Areas
room name
Dimensions
Specifications
Dining Area
46' x 54'
14.0m x 16.4m

Seating for 50+, kitchen

Production Office
46' x 36'
14m x 10.97m

Desks & Data for 12-15 people

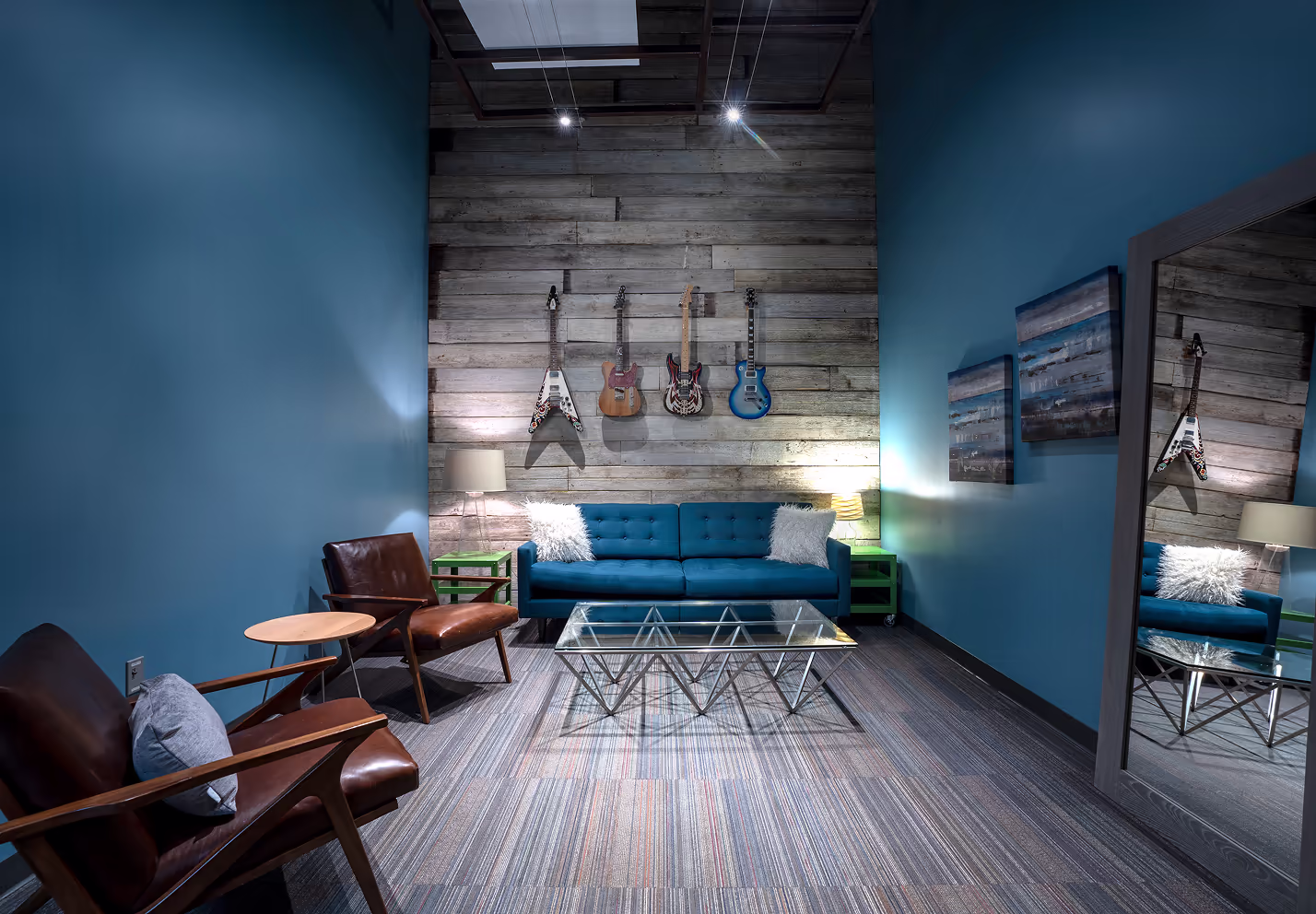

Private Dressing Room
12' x 18'
3.6m x 5.4m

Dressing space / data for 2, private restroom

Private Unisex Bathroom
7' x 7'
2.1m x 2.1m

Half Bath - 1 stall, 1 sink

Private Dressing Room
12' x 18'
3.6m x 5.4m

Dressing Space, Desk / Data for 2, private restroom (#6)

Private Unisex Bathroom
7'x 10'
2.1m x 3.0m

Full bath - 1 toilet, 1 sink, 1 shower

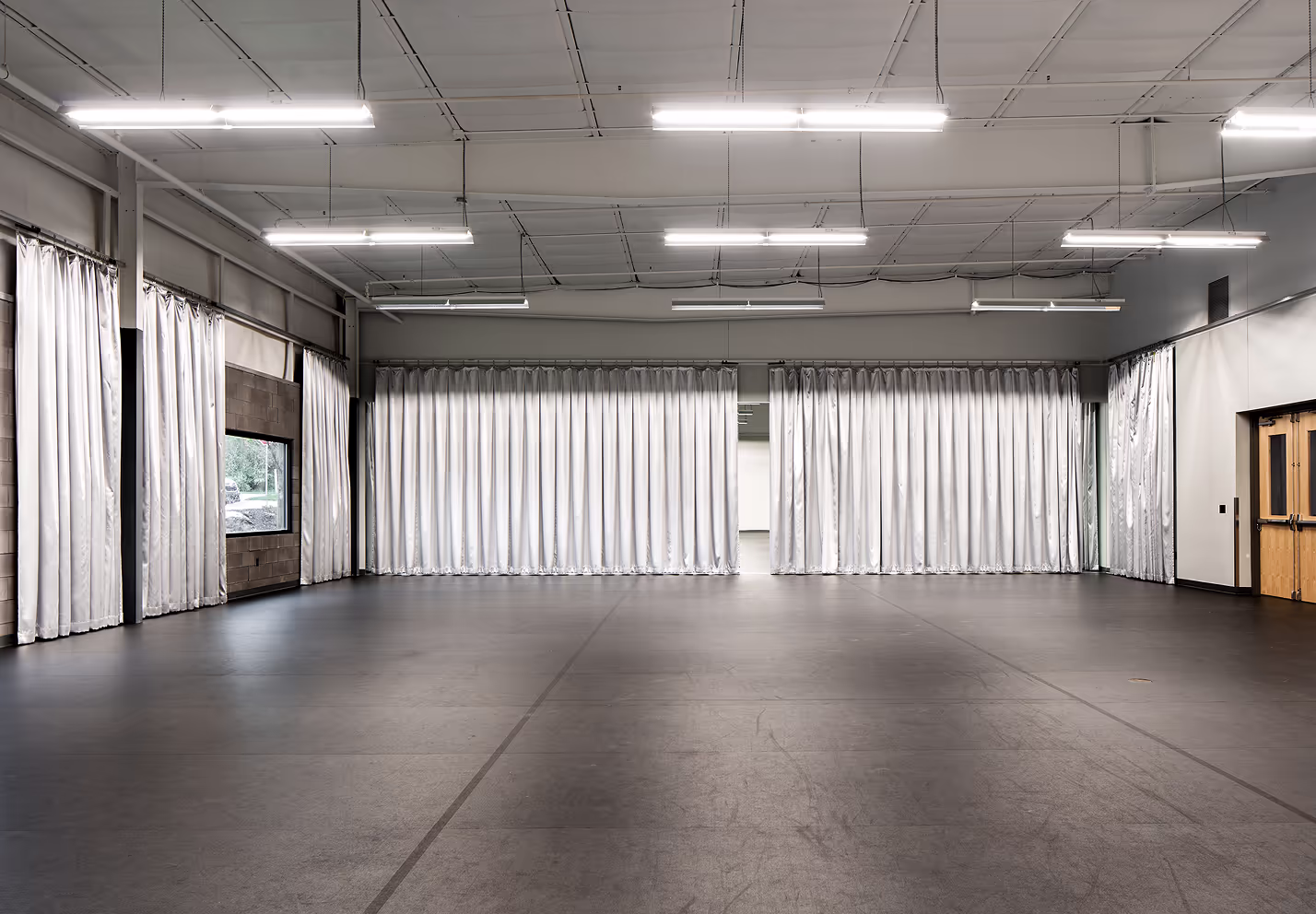

Rehearsal Room
68' x 48'
20.7m x 14.6m

Mirrored wall with adjustable curtains

Men's Restroom
9' x 19'
2.7m x 5.7m

1 stall, 2 urinals, 3 sinks

Women's Restroom
9' x 19'
2.7m x 5.7m

3 stalls, 3 sinks

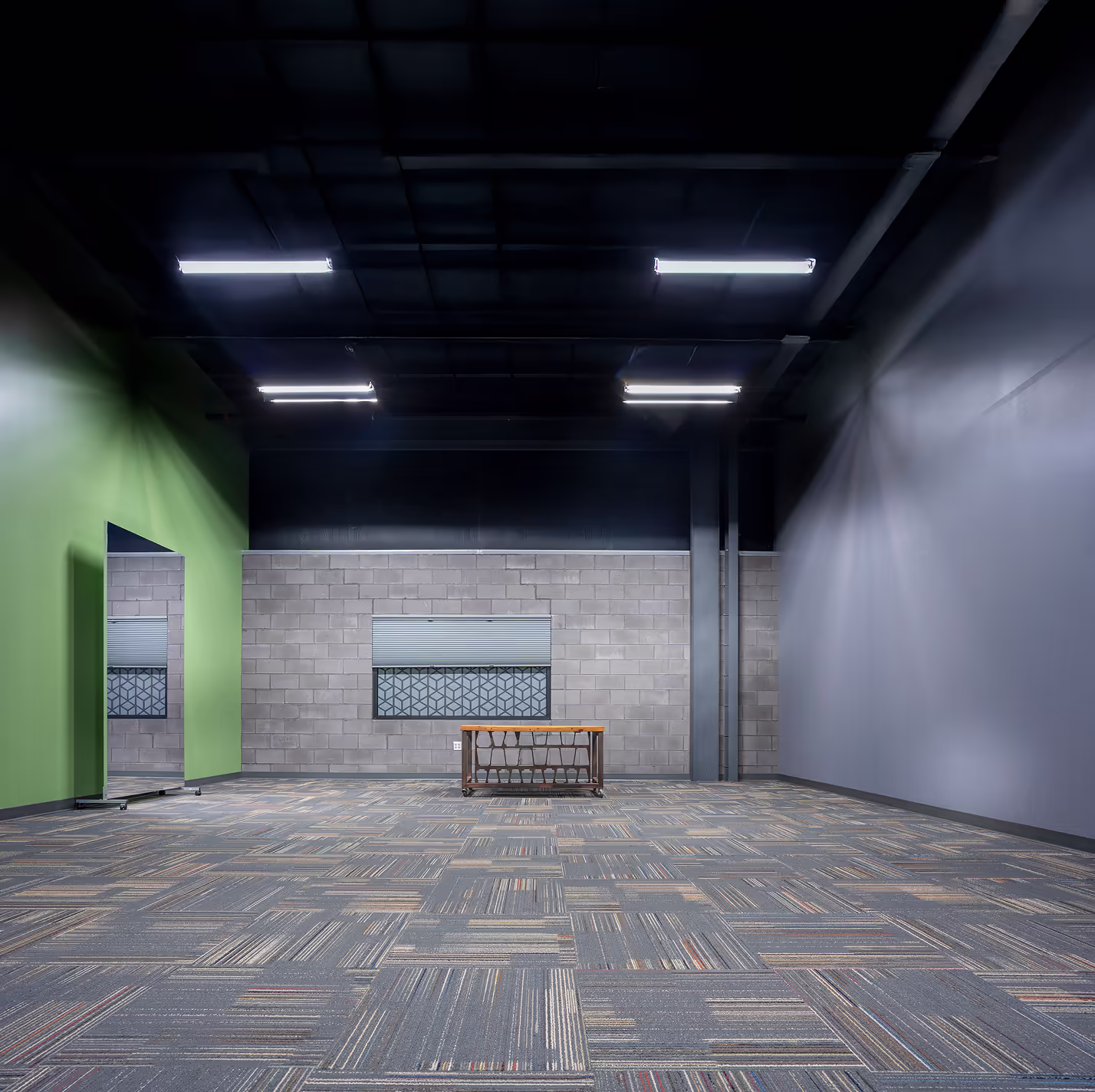

Dressing Room
25' x 38'
7.6m x 11.5m

Open space, lounge, desk / data for 5-10 people

Dressing Room Restroom
15' x 19'
4.5m x 5.7m

2 stalls, 1 shower, 2 sinks

Dressing Room
25' x 38'
7.6m x 11.5m

Open Space, Lounge, Desks / Data for 5-10 people

Dressing Room Restroom
9' x 19'
2.7m x 5.7m

1 stall, 1 urinal, 1 sink, 1 shower

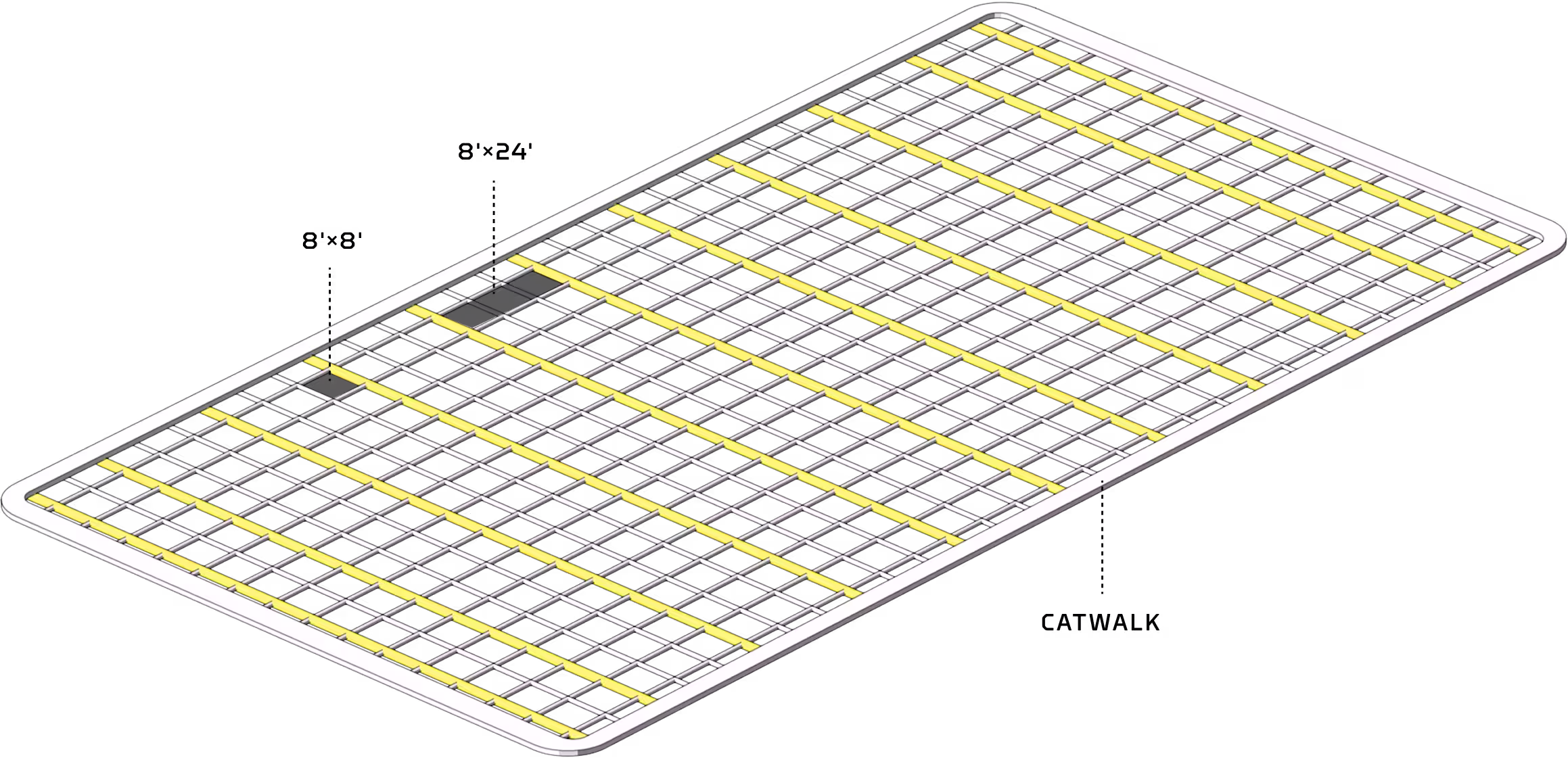

Rigging Specifications

3 ton point loads on each 8’ span with a total of 15 tons on any 8’ x 24’ area. Total live load of 198 psf including a 1.25 impact load factor500 US tons / 1,000,000 lbs total building load available

2.72 metric ton point loads on each 2.44 m span, with a total of 13.6 metric tons on any 2.44 m x 7.32 m area. Total live load of 967 kg/m², including a 1.25 impact load factor.453 metric tons / 453,000 kg total building load available

Tech Packet .PDF
↓
Contact for .DWG
→
Max Capacity
500tn
453mt
Height to Ceiling
100'
30.48m
Height to Grid
80'
24.38m
Safety
Fall protection cable system installed 6' 8" above each beam in grid system
Fall protection cable system installed 2m above each beam in grid system
Full Specifications
Dimensions

Uninterrupted 125’x240’ open space. 80’ to grid, 100’ to ceiling

Rigging
ROOF CAPACITY

500 US ton / 1,000,000 lb load capacity

GRID SPECIFICATIONS

3 ton point loads on each 8’ span with a total of 15 tons on any 8’ x 24’ area. Total live load of 198 psf including a 1.25 impact load factorSAFETYFall protection cable system installed 6’8” above each beam in grid system

Rooms
  • Main Studio Space - 125’ x 240’
  • Production Office - 46' x 36', desks / data for 12 - 15 people
  • Private Dressing Room - 12' x 18', dressing space / data for 2 people, private restroom
  • Private Unisex Restroom - 7' x 7', half-bath / 1 stall, 1 sink
  • Private Dressing Room - 12' x 18', dressing space / data for 2 people, private restroom
  • Private Unisex Restroom - 7' x 10', full-bath / 1 toilet, 1 sink, 1 shower
  • Rehearsal Room - 68'x 48' mirrored wall with adjustable curtains
  • Men's Restroom - 9' x 19', 1 stall, 2 urinals, 3 sinks
  • Women's Restroom - 9' x 19', 3 stalls, 3 sinks
  • Dining Area - 46' x 54', seating for 50+, kitchen
  • Dressing Room - 25' x 38', open space, lounge, desks / data for 5-10 people
  • Dressing Room Restroom - 9' x 19', 2 stalls, 1 shower, 2 sinks
  • Dressing Room - 25' x 38', open space, lounge, desks / data for 5-10 people
  • Dressing Room Restroom - 9' x 19', 1 stall, 1 urinal, 1 sink
Power
  • [8] 400A 3ø show power service
  • [2] 400A 3ø service broken down to:
  • [1] 100a 5 wire 3ø cam lock
  • [2] 560R9 blue 60a 120/208v 3ø
  • [2] 320R9 yellow 125v 1ø
  • [8] L21-30 30a 120/208v 3ø twist lock
  • [4] 20a 120v edison

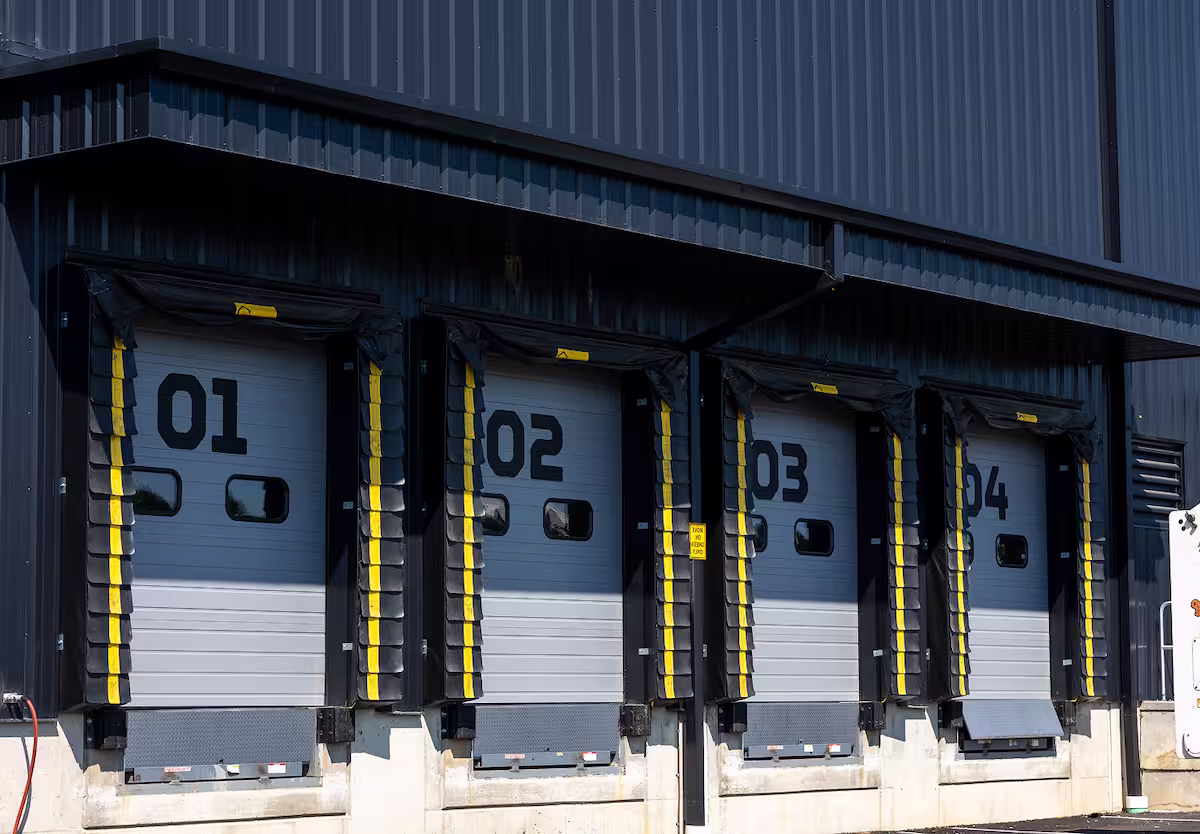

Load-in
  • [4] loading docks with levelers, with 20’ push to floor
  • [1] 14’x14’ drive through door
  • [1] 12’x12’ drive in door, with easy accessibility to artist’s dressing rooms

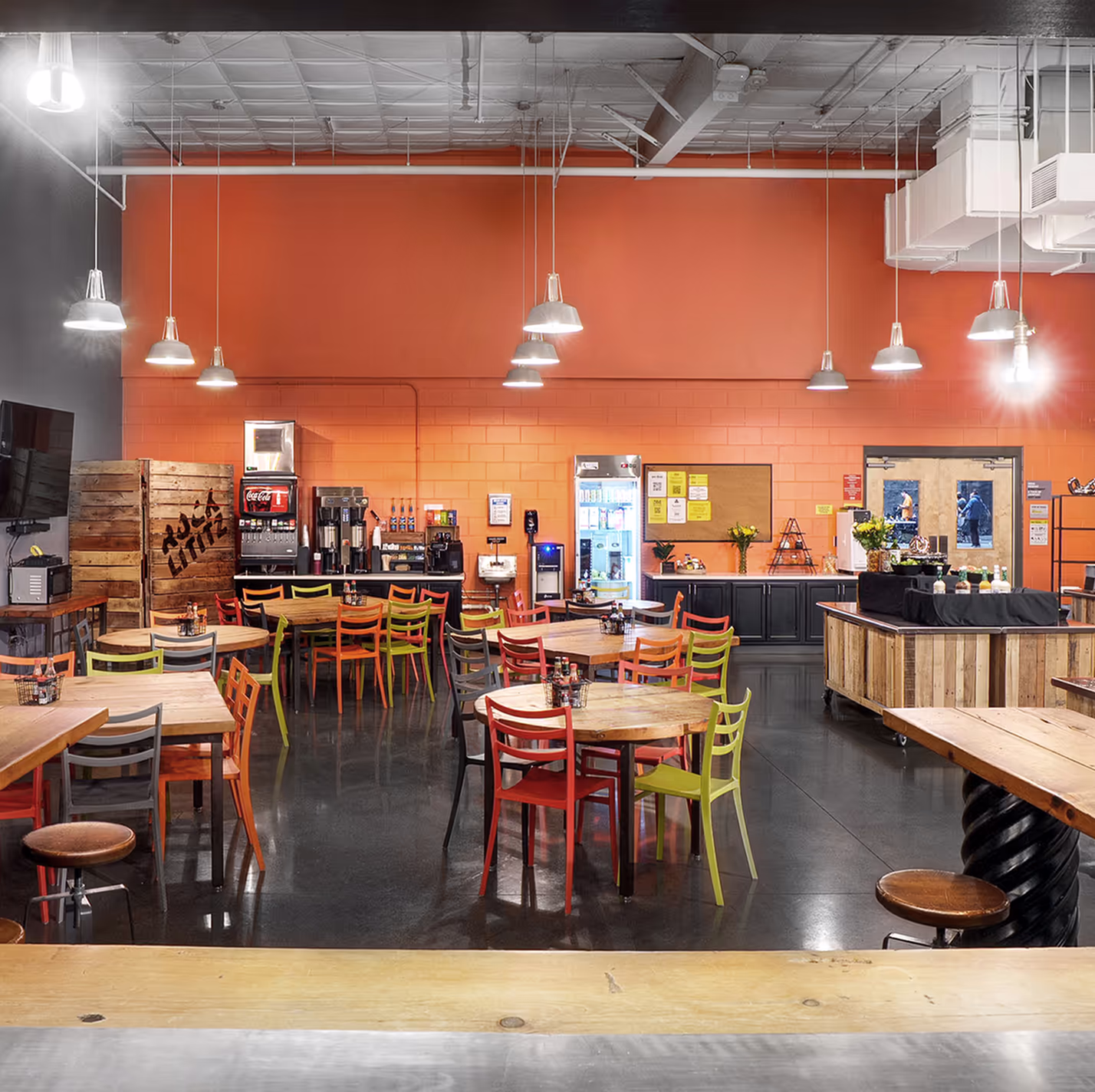

Catering

Full service catering kitchen with private dining for crews, 46' x 54', seating for 50+

Data Services
Labor

Provided through Rock Force

Additional Space

More amenity space available on campus upon request. All rentals come with access to Pod 2, including common area, gym, music shop, vendors, conference rooms, additional rehearsal space, and more.

Dimensions

Uninterrupted 38.1m x 73.15m open space. 24.38m to grid, 30.48m to ceiling

Rigging
ROOF CAPACITY

453 metric tons / 453,000 kg load capacity

GRID SPECIFICIATIONS

2.72 metric ton point loads on each 2.44 m span, with a total of 13.6 metric tons on any 2.44 m x 7.32 m area.
Total live load of 967 kg/m², including a 1.25 impact load factor.

SAFETY

Fall protection cable system installed 2m above each beam in grid system

Rooms
  • Main Studio Space - 38.1m x 73.15m
  • Production Office - 14.0m x 10.8, desks / data for 12 - 15 people
  • Private Dressing Room - 3.6m x 5.4m, dressing space / data for 2 people, private restroom
  • Private Unisex Restroom - 2.1m x 2.1m, half-bath / 1 stall, 1 sink
  • Private Dressing Room - 3.6m x 5.4m, dressing space / data for 2 people, private restroom
  • Private Unisex Restroom - 2.1m x 3.0m, full-bath / 1 toilet, 1 sink, 1 shower
  • Rehearsal Room - 20.7m x 14.6m, mirrored wall with adjustable curtains
  • Men's Restroom - 2.7m x 5.7m, 1 stall, 2 urinal, 3 sink
  • Women's Restroom - 2.7m x 5.7m, 3 stall, 3 sink
  • Dining Area - 14.0m x 16.4m, seating for 50+, kitchen
  • Dressing Room - 7.6m x 11.5m, open space, lounge, desks / data for 5-10 people
  • Dressing Room Restroom - 2.7m x 5.7m, 2 stall, 1 shower, 2 sink
  • Dressing Room - 7.6m x 11.5m, open space, lounge, desks / data for 5-10 people
  • Dressing Room Restroom - 2.7m x 5.7m, 1 stall, 1 urinal, 1 sink
Power
  • [8] 400A 3ø show power service
  • [2] 400A 3ø service broken down to:
  • [1] 100a 5 wire 3ø cam lock
  • [2] 560R9 blue 60a 120/208v 3ø
  • [2] 320R9 yellow 125v 1ø
  • [8] L21-30 30a 120/208v 3ø twist lock
  • [4] 20a 120v edison
Load-in
  • [4] loading docks with levelers, with 6m push to floor
  • [1] 4.2m x 4.2m drive through door
  • [1] 3.6m x 3.6m drive in door, with easy accessibility to artist’s dressing rooms\
Catering

Full service catering kitchen with private dining for crews, 14.0m x 16.4m, seating for 50+

Data Services
Labor

Provided through Rock Force

Additional Space

More amenity space available on campus upon request. All rentals come with access to Pod 2, including common area, gym, music shop, vendors, conference rooms, additional rehearsal space, and more.
